[2 Years Free Update][No IP Restriction] OTOFIX IM2 Key FOB Programming Tool Features:
- Advanced Key Programming: Support OBD key programming of 80% of models; cover more than 95% of common models
- All Systems Diagnostics: AutoVIN is used to detect vehicles for quick system-wide scans. Support code reading, erasure code, ECU information, real-time data and active testing, etc., the data is accurate and comprehensive.
- Advanced Services: 40 models + maintenance service functions
- Cloud Solutions: Remote expert and online report management

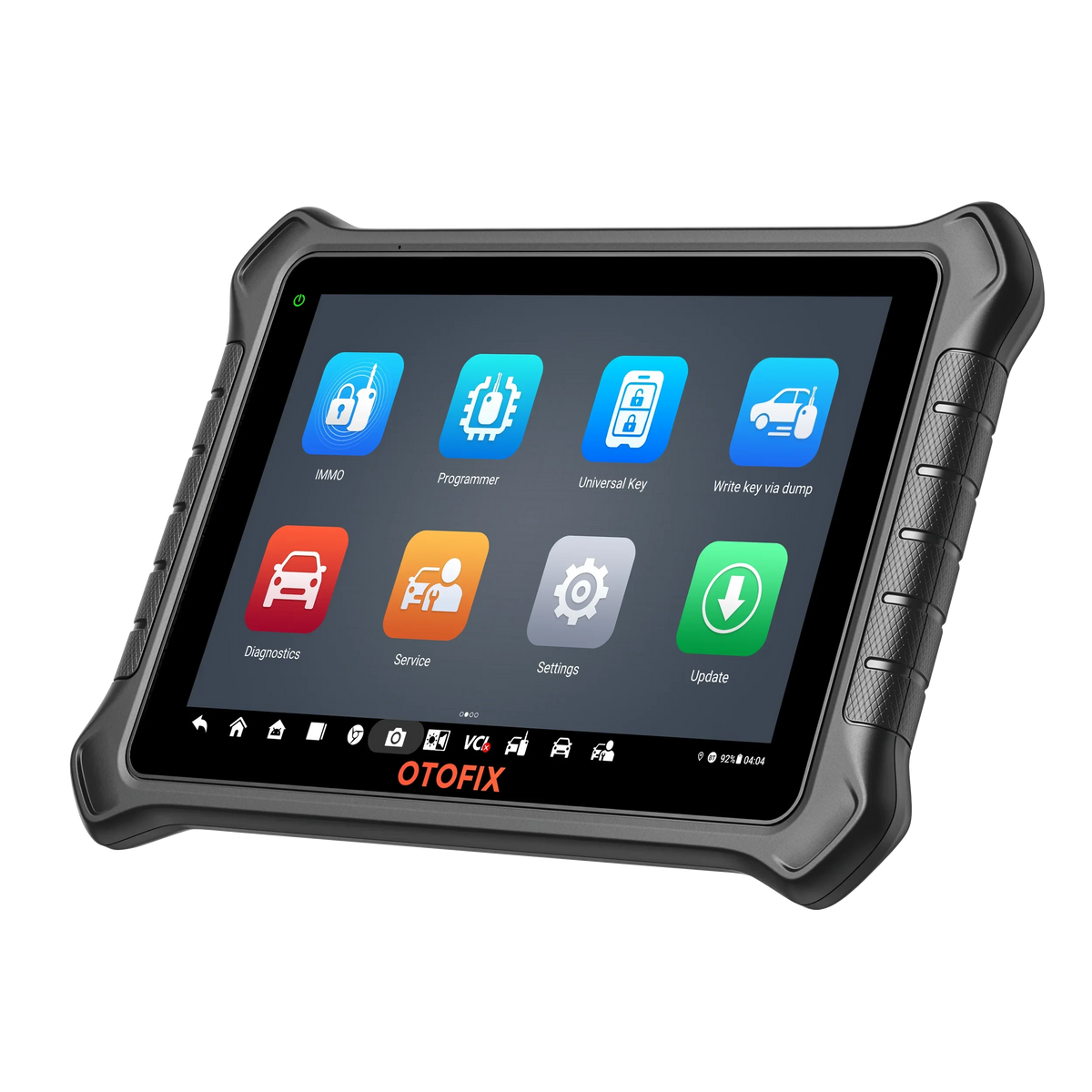

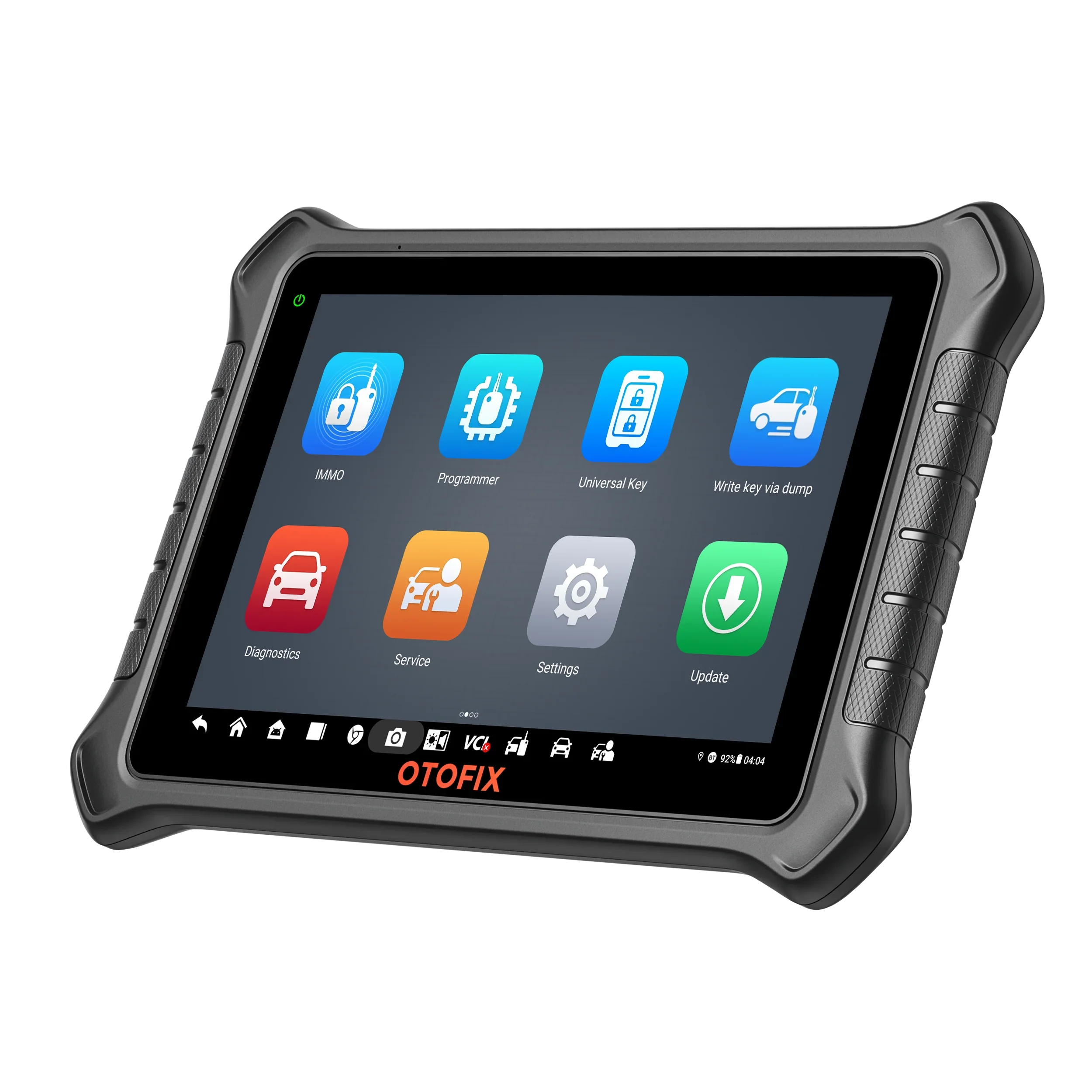

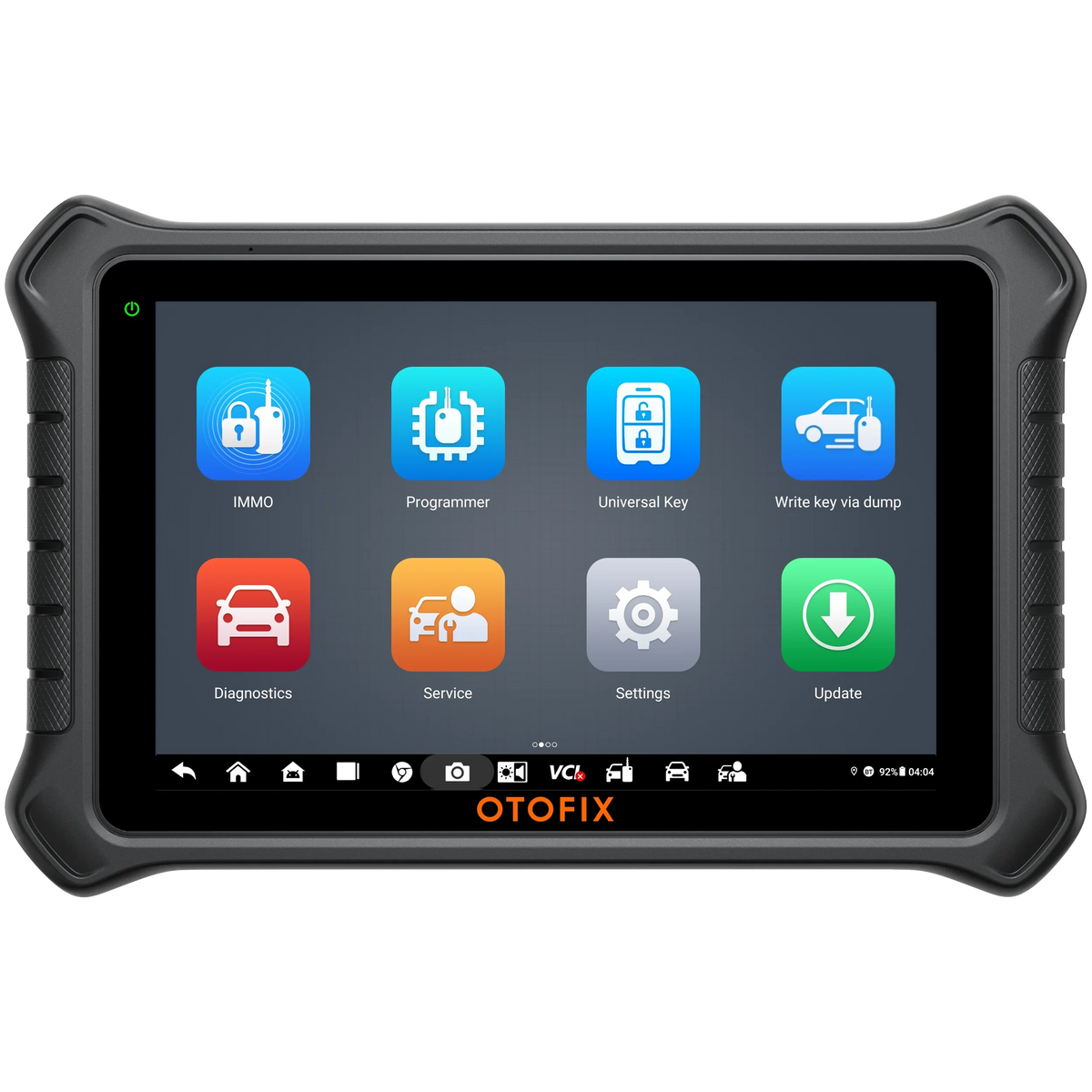

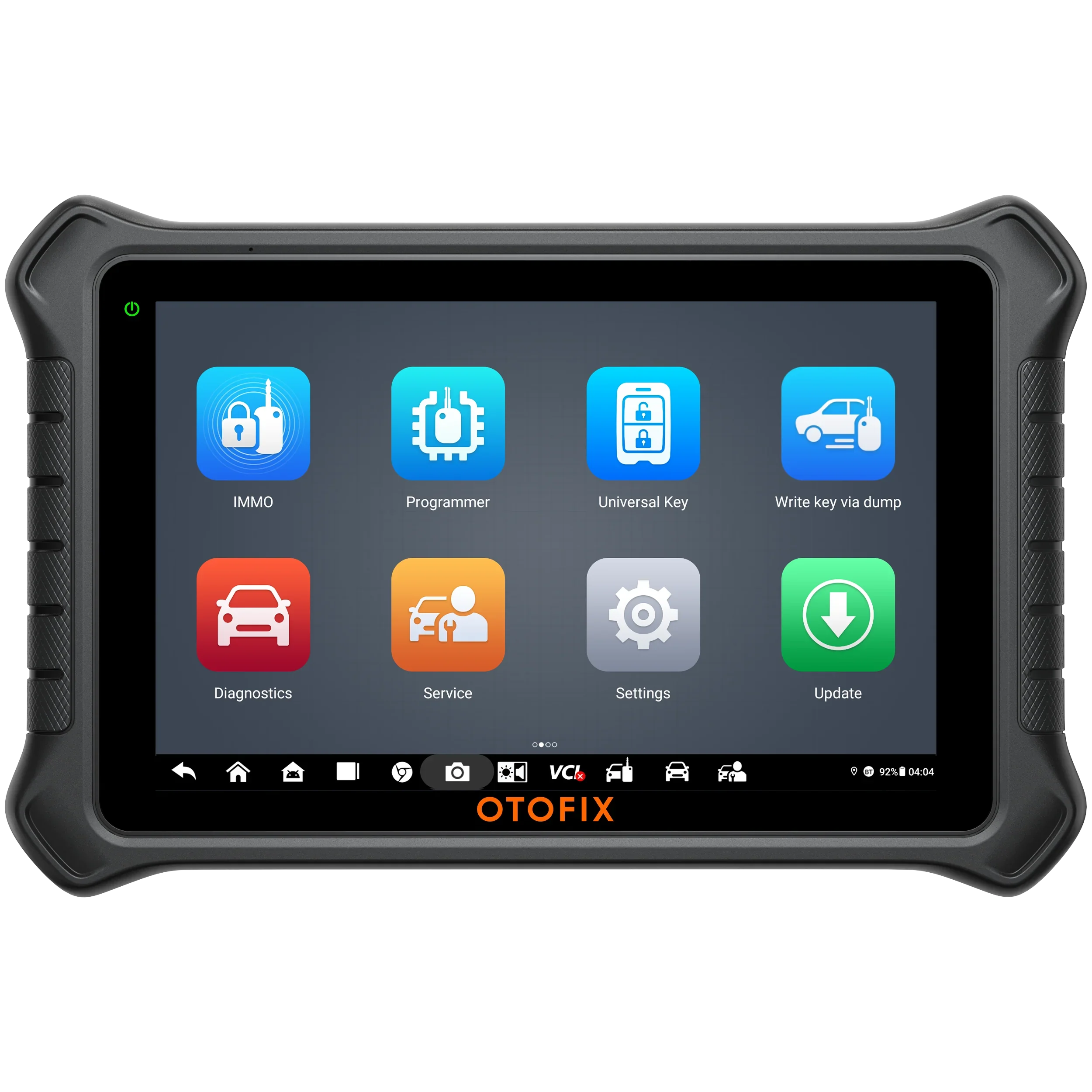

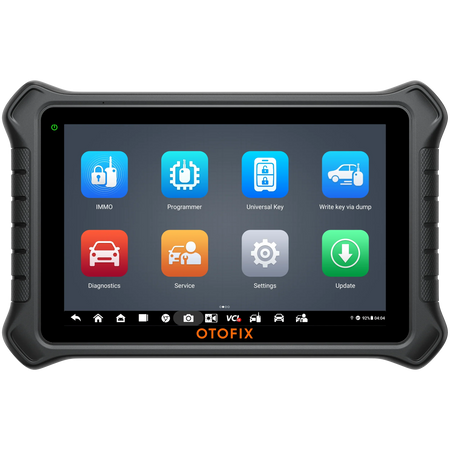

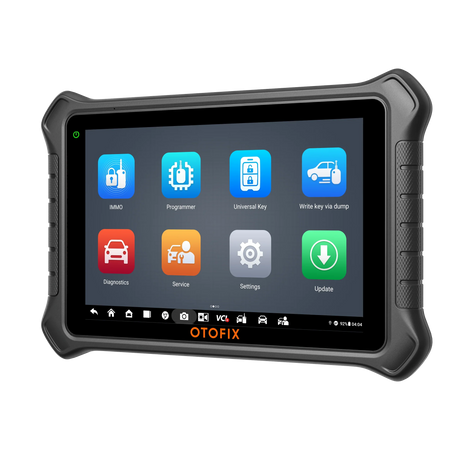

OTOFIX IM2: Your IMMO & Key Programming Master
√ No IP Restriction: this key programming for all cars can be used in all countries on earth.
√ 2 Years Free Software Update: get the latest software updates for 2 years, without having to pay for pricey renewals.
√ Complete IMMO Coverage: support immobilizer functions on 80+ vehicle makes and models worldwide; 90% models for key programming via OBD.
Smart Mode & Expert Mode: for guided/automated key learning, or advanced key learning with quick access to desired functions. Confidently work with any OEM and aftermarket keys and fobs.
√ Advanced Key Programming: PIN/CS access (all key lost), key generation, key learning, remote learning & activation; all is made easy.
√ Advanced IMMO: IMMO ECU reset/adaptation; IMMO ECU refresh/coding; IMMO restore; IMMO ECU data back-up with 64GB memory; all are easily accessible.

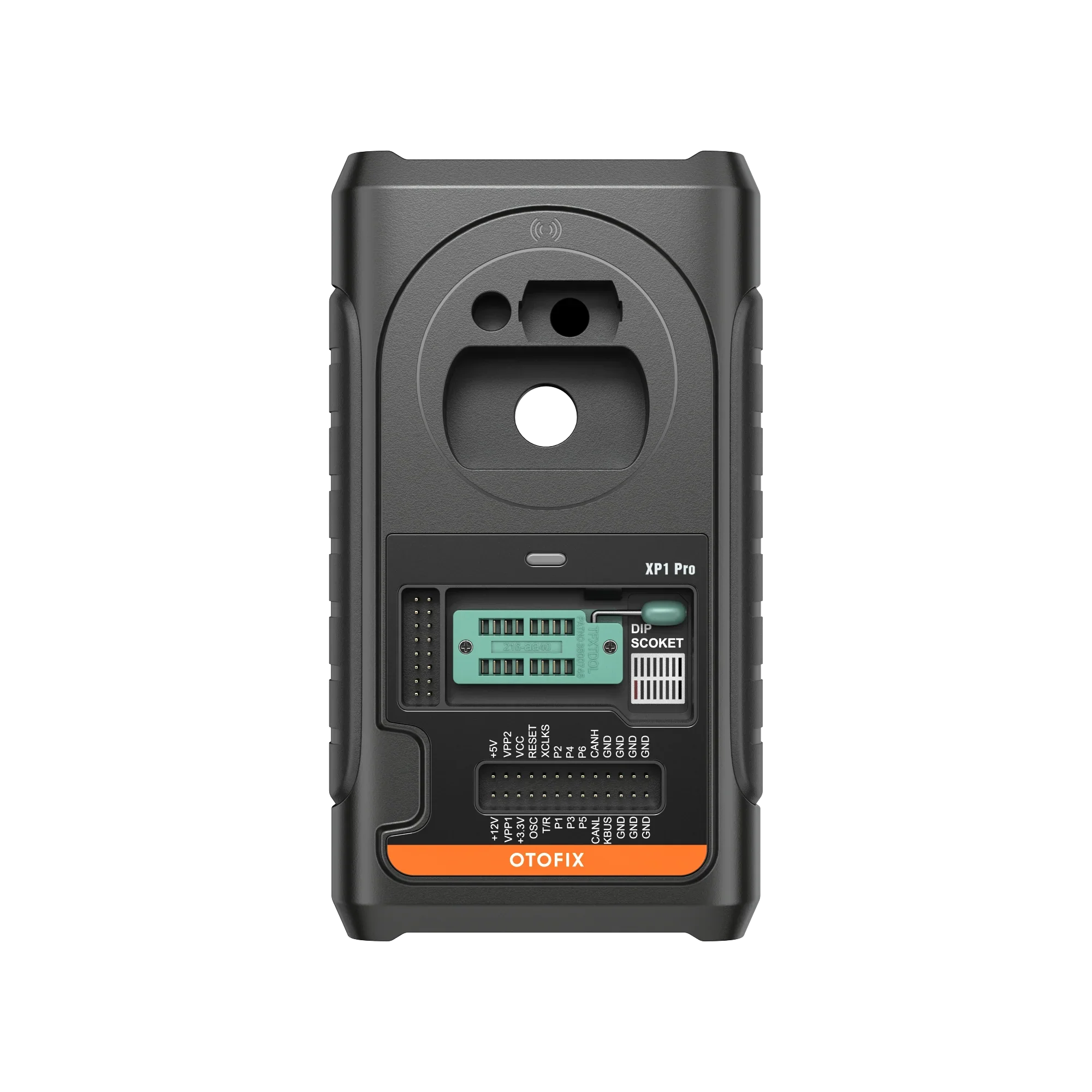

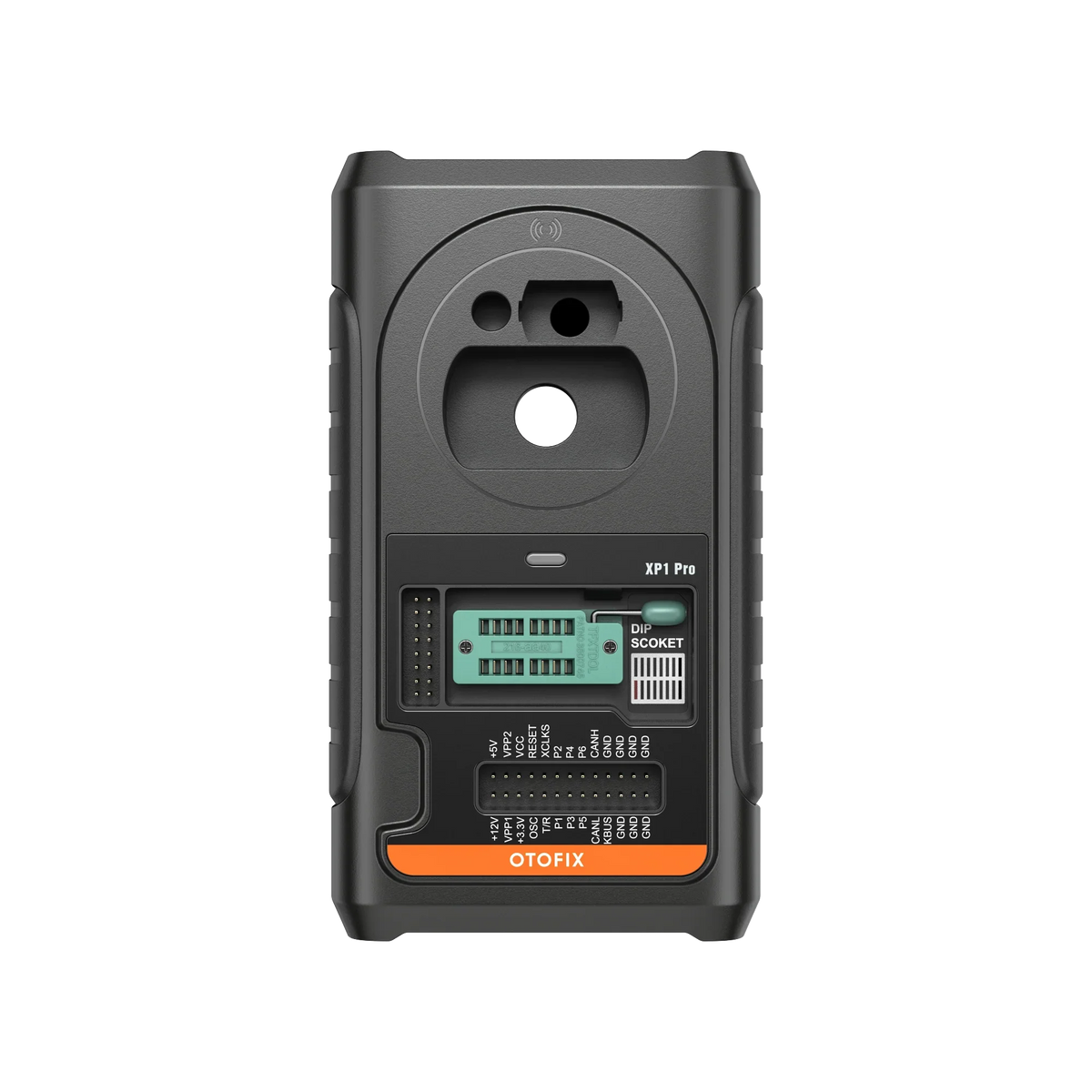

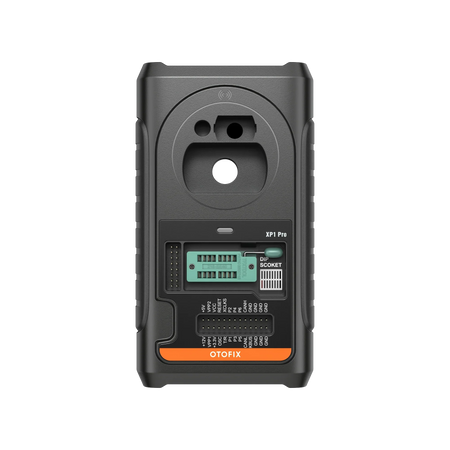

√ XP1 Pro Chips Programming: Read/write transponder data, ECU/MCU/EEPROM data (e.g. 9S12 encryption chip), IC card, detect remote frequency; if you require chip read write or encryption capabilities.
√ Enhanced Operations: can run key learning and adaption for BM.W FEM/BDC; generate IR keys for Benz; add key for VW/Audi III/IV/V AKL; make transponder alterations for VWs and Audi MQB; read PIN/CS for Audi Q5/A4/A5 2015-2017; and many more. (See details on page)
√ Built-in Database Guidance: provide chip number, key frequency, key type, and maximum number of keys supported by the vehicle, while key programming on an unfamiliar vehicle.
√ Expand features with Key Programming Adapter G-Box2, and the Smart Key Emulator APB112 (Optional).

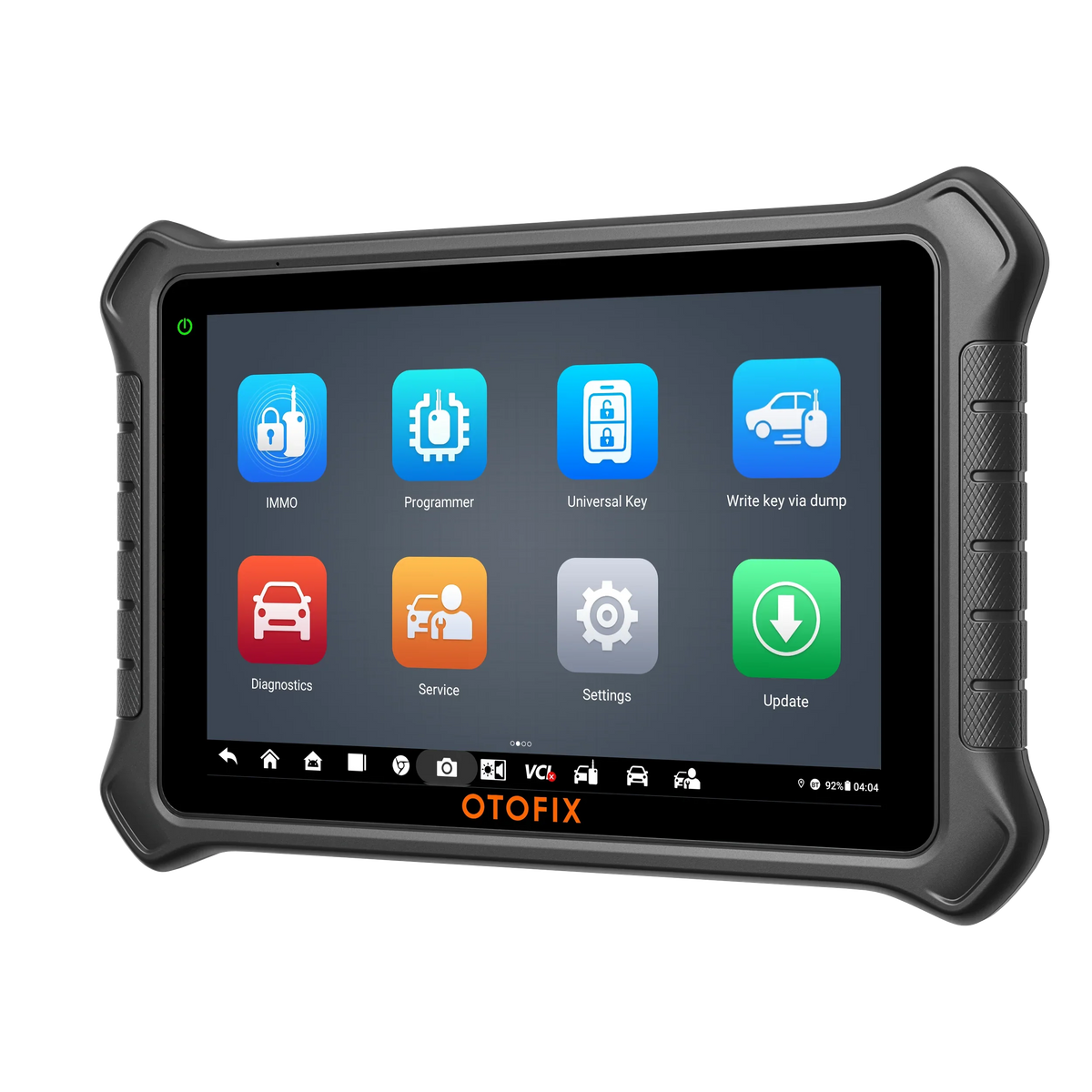

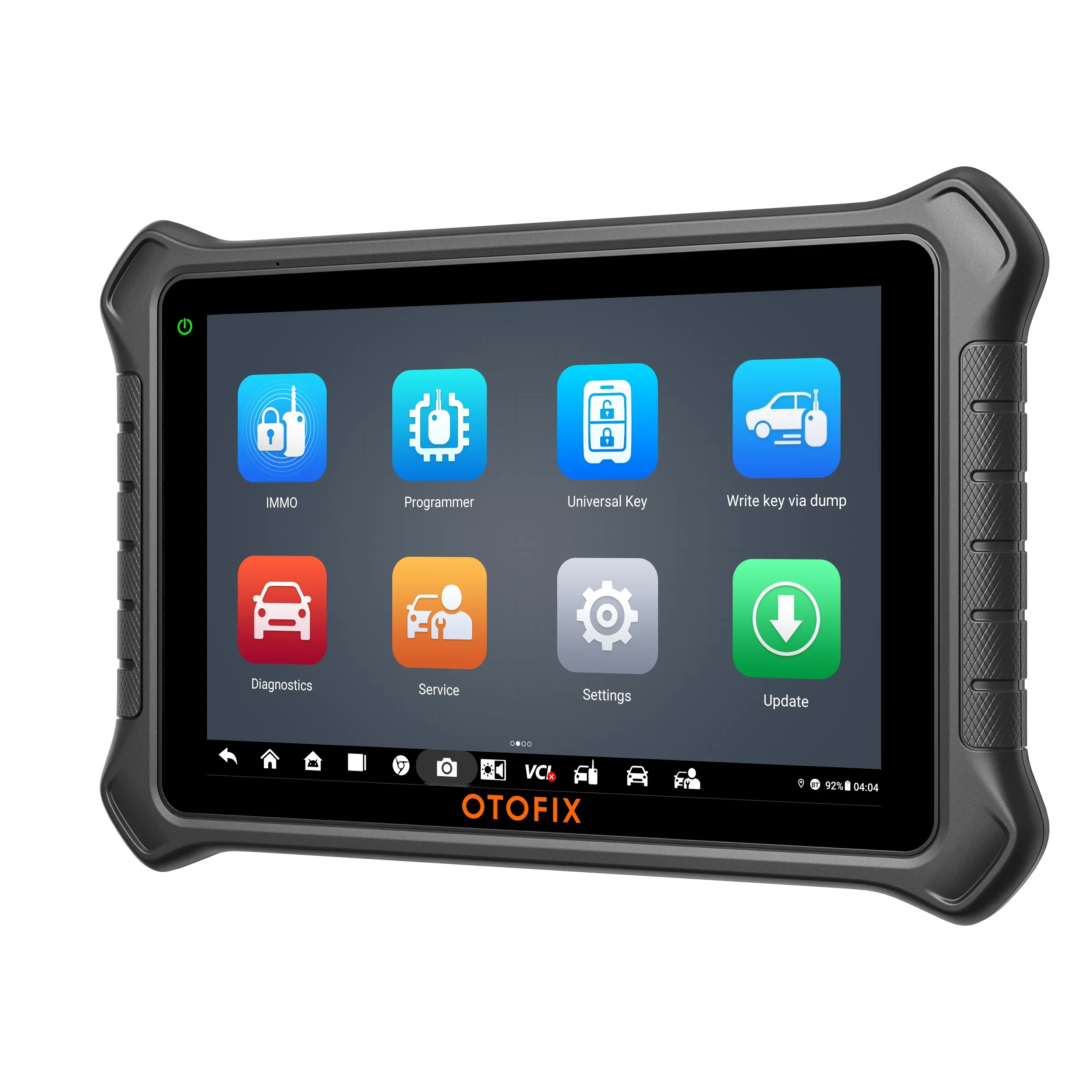

OTOFIX IM2 Key FOB Programming Tool Specification:
| Model | Otofix IM2 | |
| Hardware | Processor | Qualcomm SDM660 Octa-core Processor: |
| 4x 2.2 GHz(A73) | ||
| 4x 1.8 GHz(A53) | ||
| Operating System | Android 10.0 | |
| RAM | 4 GB | |
| ROM | 128 GB | |
| Screen | 10.1 inches | |
| Resolution | 1920*1200 | |
| Wi-Fi | Wi-Fi (802.11 a/b/g/n/ac) | |
| BT | BT V5.0 + BR/EDR | |
| USB | USB 2.0:(2 USB HOST Type A, 1 USB mini device) | |
| HDMI | HDMI 2.0 | |
| SD Card | SD Card (Support up to 64GB) | |
| Battery | 3.8V 15000 mAh | |
| Camera | Rear: 16 Megapixel, AF with Flashlight | |

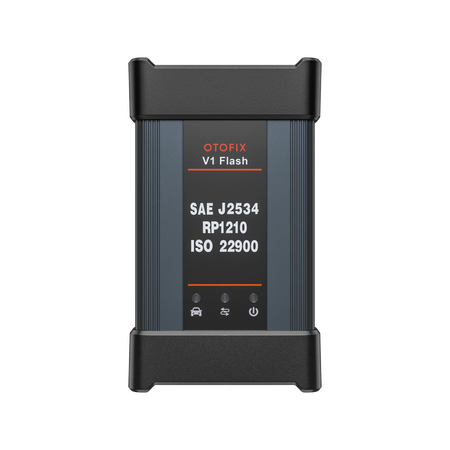

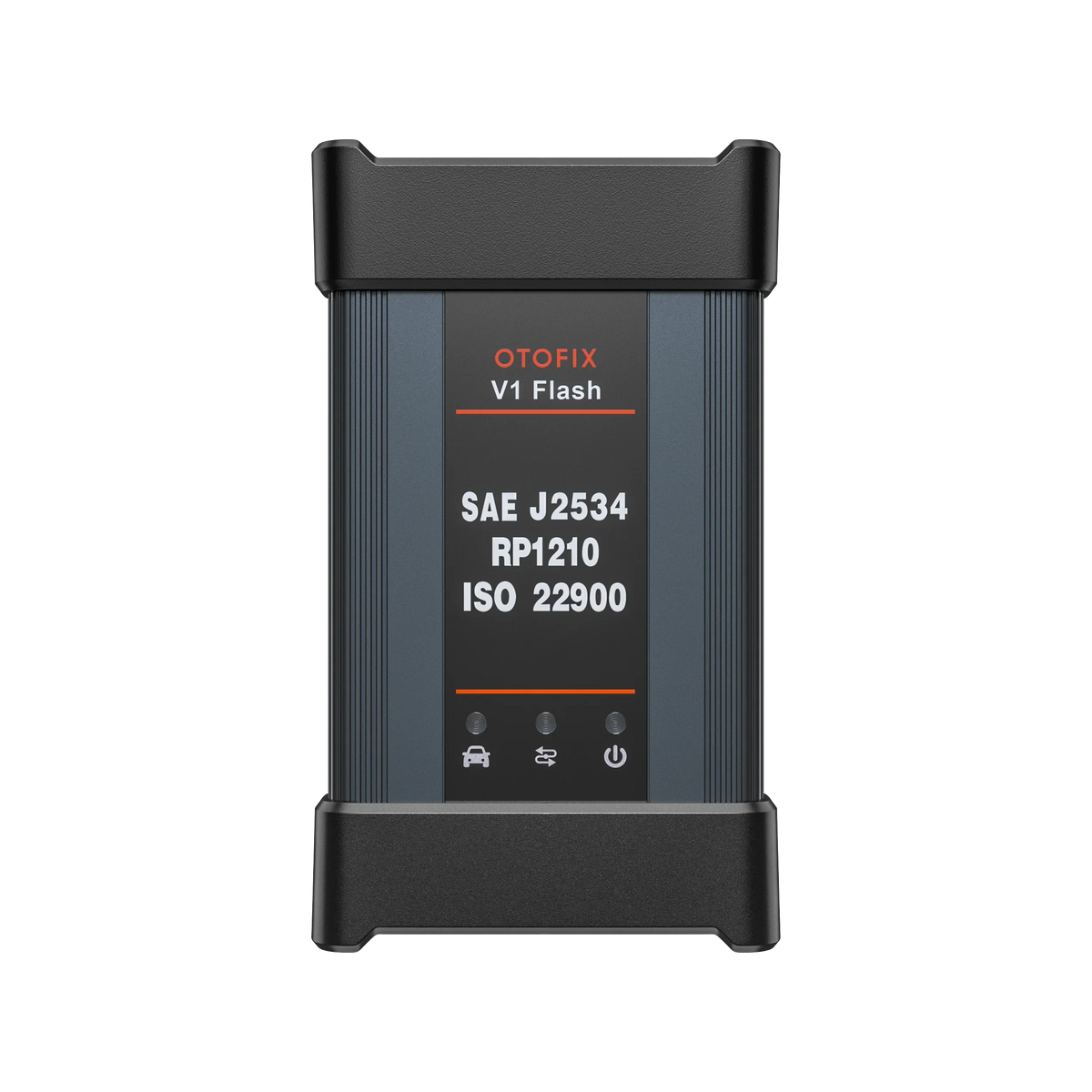

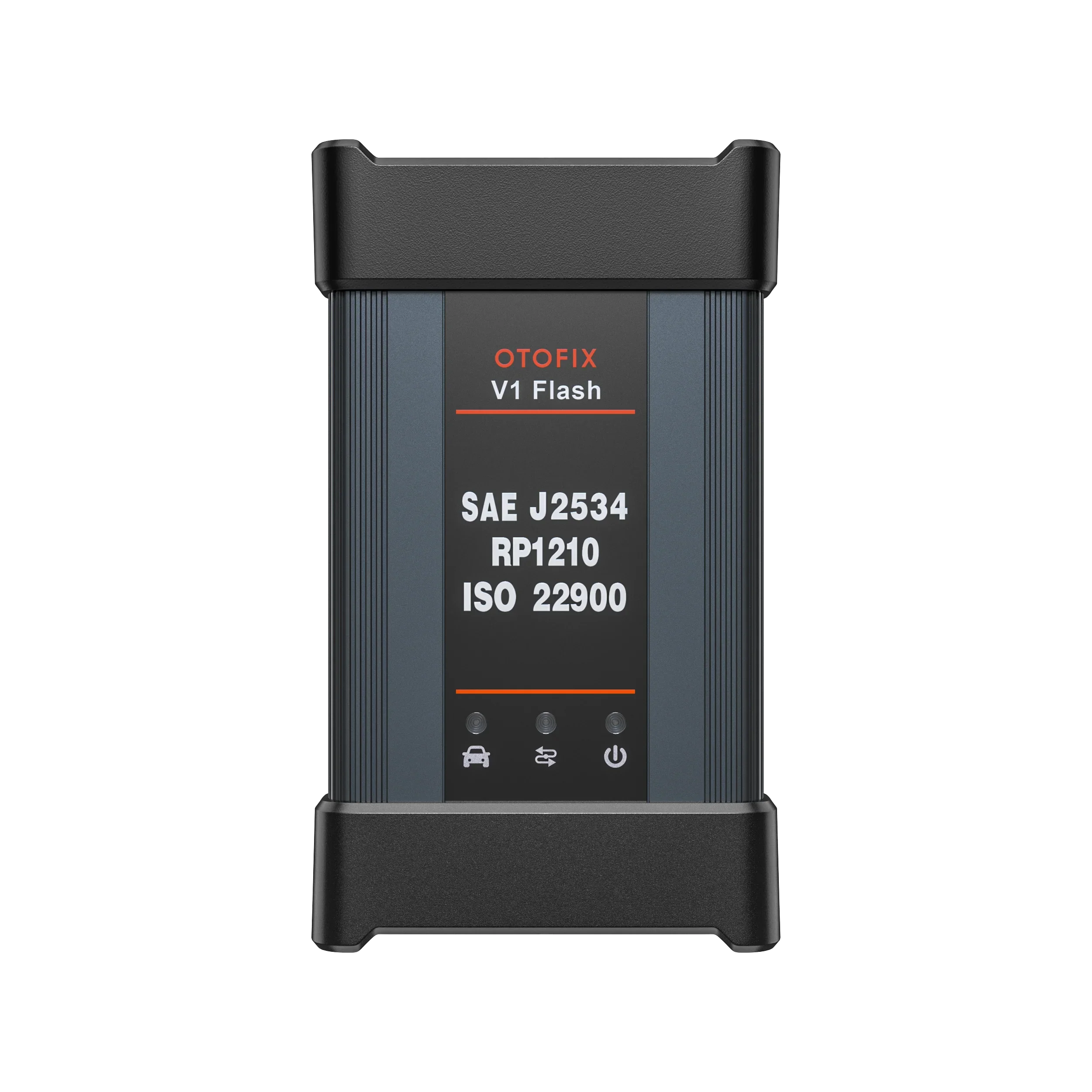

| Connection | V1 Flash | |
| Programmer | XP1 Pro | |
| Weight | 1.58 kg | |
|
Programmer Function (Note: All functions are covered most extensively when paired with XP400 PRO and its accessories) |
Reading/Writing EEPROM | Yes |
| Reading/Writing MCU | Yes | |
| Reading/Writing Engine ECU | Yes | |
| Reading/Writing IMMO ECU | Yes | |
| Universal Key Information Detection | Yes | |
| Write key to ECU by programmer | Yes | |
| Key Unlocking | Yes | |
| Frequency Detection | Yes |
| Model | Otofix IM2 | |
| Keytool Functions | Universal key generation | Yes |
| Chip Simulation (Need APB112) | Yes | |
| Diagnostic Functions | Auto VIN | Yes |
| Reading/ Erasing codes | Yes | |
| Read Live Data | Yes | |
| Read Freeze Data | Yes | |
| Read ECU information | Yes | |
| Active Test | Yes | |
| Service Function | Yes (40 service features) | |
| Special Function | Yes | |
| Online Coding | Yes (Mercedes-Benz not included) | |
| Offline Coding | Yes | |
| Hidden Function | Yes. (Mercedes-Benz not included) | |
| Guided Function | Yes. (Mercedes, BMW, JLR are not included) | |
| Offline Programming | Yes | |
| Cloud Service | Report Management | |
| Other | SCAN VIN | |
| SCAN License | ||
| Remote Desk | ||
| DoIP(Adapters required) | ||
| CANFD(Adapters required) | ||
| Remote Expert | Yes | |
| Expandability | Endoscope | Yes(Optional) |
