X-431 ECU Module Cloning Equipment Overseas Configuration - ThinkCar & TopDon

LT-X431ECU
Shipping calculated at checkout.

Log in to purchase

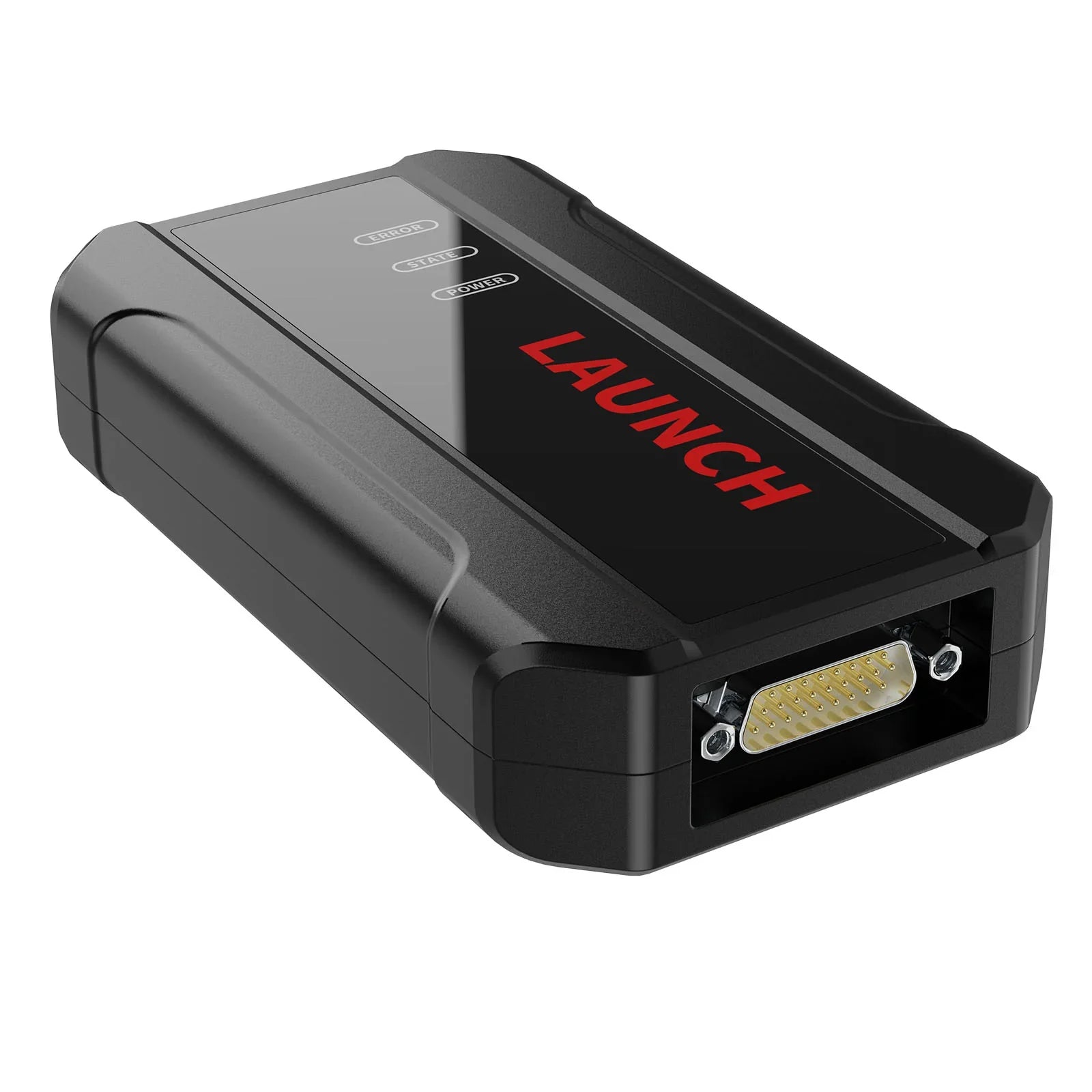

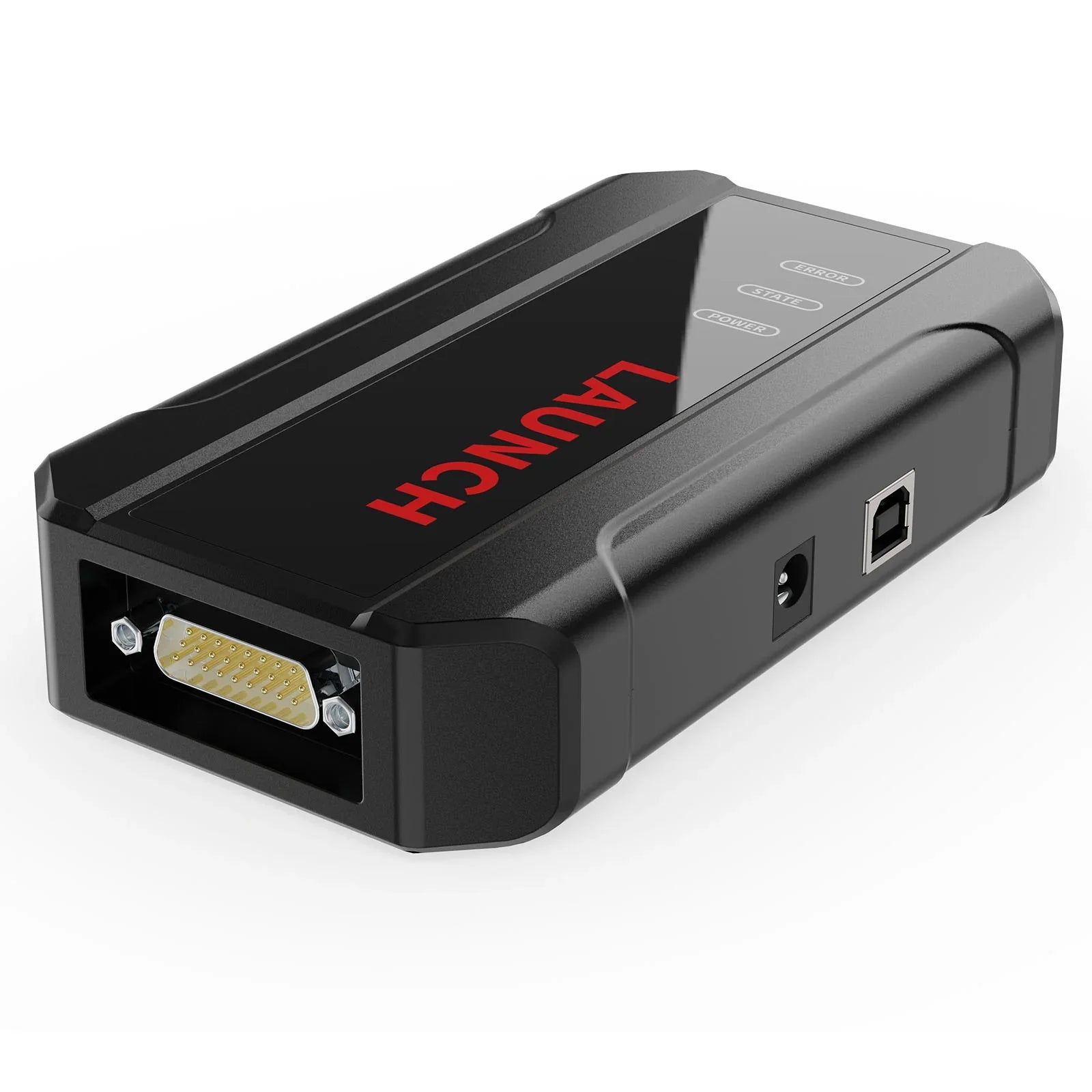

Launch X431 ECU & TCU Programmer Standalone PC Version

The X-431 ECU & TCU Programmer supports ECUs data reading & writing quickly, including reading the chip ID and backing up the EEPROM data, backing up the FLASH data and restoring EEPROM/FLASH data.
There are two methods to read various vehicle brand ECUs info. The X-431 ECU & TCU Programmer also supports Data Processing, anti-theft shutdown and file verification.

Features:
  • Easy to copy data
  • Powerful search function
  • 2D menu, clear and easy to choose
  • Convenient modification of ECU data
  • Supports Checksum Correction, IMMO Off
  • Support engine data validation function
  • 2 years update online, the subscription is $299/year.
  • Software download link: https://en.cnlaunch.com/download
  • Multi-Language: English, German, Japanese, Russian, French, Portuguese, Italian, Korean
  • USB communication, with a speed more than three times that of Android devices, making it more stable
  • Software language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese Select the corresponding language setup to install.
Functions:
1. ECUs Data Reading & Writing quickly.
· Support two methods to read various vehicle brand ECUs info.
· Support Read the chip ID and Back up the EEPROM data.
· Support Back up the FLASH data and Restore EEPROM/FLASH data.
· Adds IMMO off function for MEDC17 ECUs

· Supports checksum correction

· Supports VAG MEDC17 ECU Clone
Porsche Simos 8.5 clone,
VAG Simos 8.5-8.6 Clone,
Porsche SDI-6-7-8 Clone.

2. Support Data Processing, anti-theft shutdown and file verification.

3. Current adapter accessories as below:

· X-PROG3 Adapter Cable 1 (DQ200XX)
· X-PROG3 Adapter Cable 2 (VL381)
· X-PROG3 Adapter Cable 3 (DQ380)
· X-PROG3 Adapter Cable 4 (DQ250)
· X-PROG3 Adapter Cable 5 (DL501)
· X-PROG3 Adapter Cable 6 (DL382)
· X-PROG3 Adapter Cable 7 (VGS-NAG3)
· X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)
· X-PROG3 Adapter Cable 9 (VGS3-NAG2)
· X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)
· X-PROG3 Adapter Cable 11 (MPS6)
· X-PROG3 Adapter Cable 12 (DPS6)
· X-PROG3 Adapter Cable Main Line (ML)

Download and Install Launch X-prog3 PC Software
How to Download PC software for Launch ECU & TCU Programmer Standalone version

Download Link: https://en.cnlaunch.com/products-detail/i-243.html

Drop down and click “Download”

Software language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese

Select the corresponding language setup


How to Install Launch X-prog3 PC Software Driver?
Take Windows 7 O/S as an example.
1. Connect Launch Programmer or X-prog3 with PC Adapter with laptop via USB, give power supply to the programmer
open Device Manager, you can see CH554-CDC device driver cannot be identified.
2. Right click CH554-CDC driver, select Properties and Update Driver
3. Select “Browse my computer to find driver software”
4. Select “Let me pick from a list of device drivers on my computer”, press Next
5. Select “Port (COM & LPT)”, press Next
6. Select manufacturer as STMicroelectronics, select the latest version of driver, press Next
7. Open Device Manager again, if you see the STMicroelectronics Virtual COM port driver it means the Launch x431 pc software driver is successfully installed.

ECU Programmer Standalone vs. X-prog3 + X431 Tablet
1. VW Audi Porsche clone function is in data processing section
2. The connection is more convenient
3. Data reading and writing speed is faster and more stable (3x times faster)
4. Data processing and transfer on PC are more convenient
5. Adds IMMO off function
6. Standalone version cannot do key programming.

LAUNCH X-431 ECU TCU Programmer

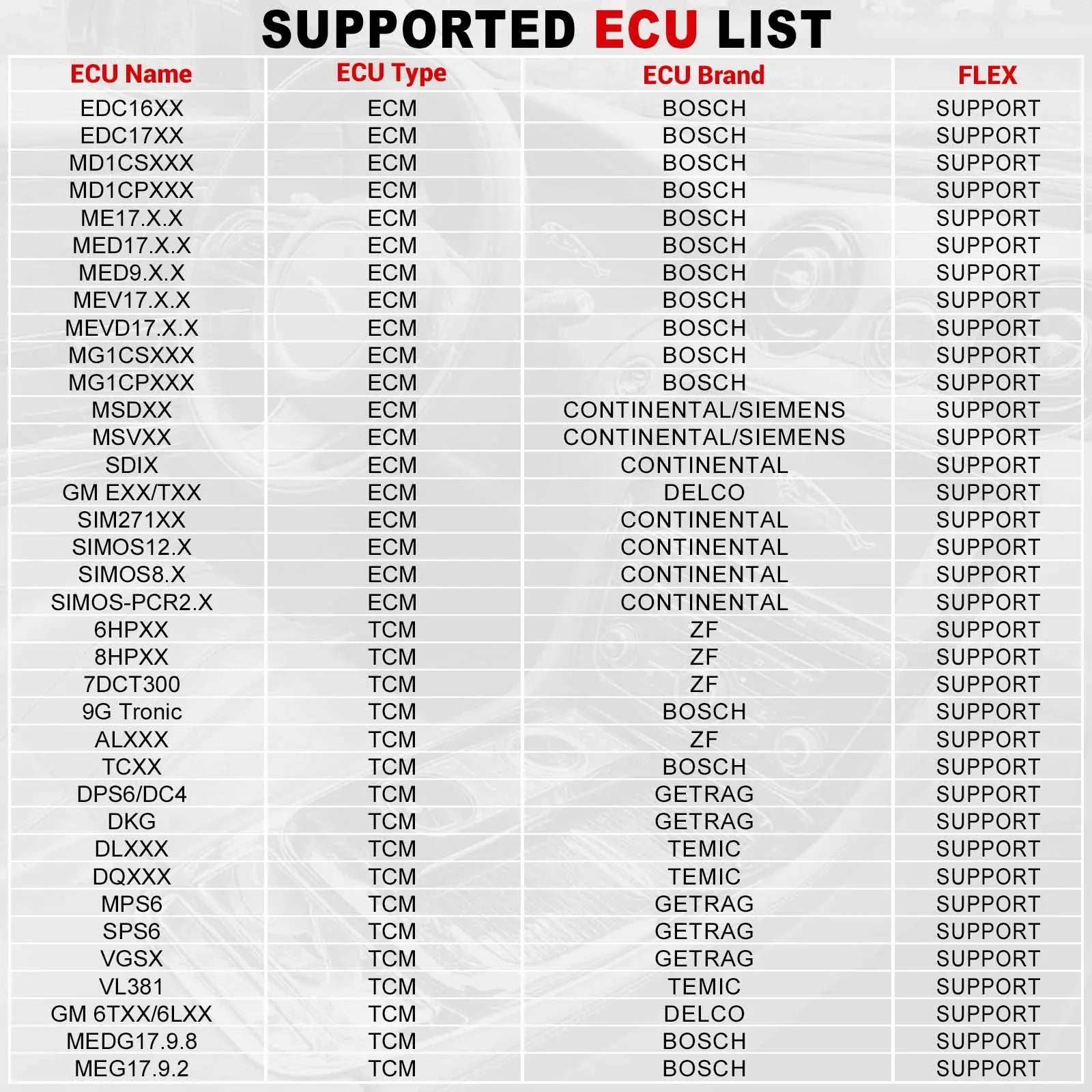

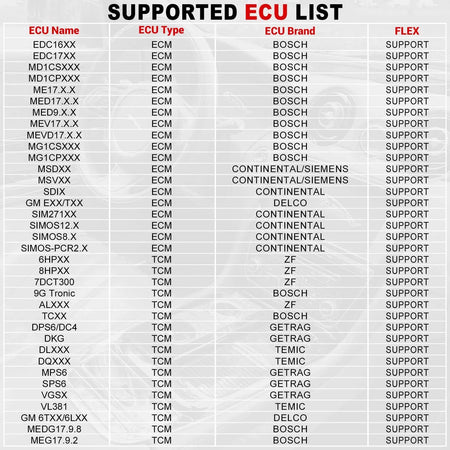

Support list June 2023:

ECU Name ECU Type ECU Brand FLEX
EDC16XX ECM Bosch Support
EDC17XX ECM Bosch Support
MD1CSXXX ECM Bosch Support
MD1CPXXX ECM Bosch Support
ME17.X.X ECM Bosch Support
MED17.X.X ECM Bosch Support
MED9.X.X ECM Bosch Support
MEV17.X.X ECM Bosch Support
MEVD17.X.X ECM Bosch Support
MG1CSXXX ECM Bosch Support
MG1CPXXX ECM Bosch Support
MSDXX ECM CONTINENTAL/SIEMENS Support
MSVXX ECM CONTINENTAL/SIEMENS Support
SDIX ECM Continental Support
GM EXX/TXX ECM DELCO Support
SIM271XX ECM Continental Support
SIMOS12.X ECM Continental Support
SIMOS8.X ECM Continental Support
SIMOS-PCR2.X ECM Continental Support
6HPXX TCM ZF Support
8HPXX TCM ZF Support
7DCT300 TCM ZF Support
9G Tronic TCM Bosch Support
ALXXX TCM ZF Support
TCXX TCM Bosch Support
DPS6/DC4 TCM GETRAG Support
DKG TCM GETRAG Support
DLXXX TCM Temic Support
DQXXX TCM Temic Support
MPS6 TCM GETRAG Support
SPS6 TCM GETRAG Support
VGSX TCM GETRAG Support
VL381 TCM Temic Support
GM 6TXX/6LXX TCM DELCO Support
MEDG17.9.8 TCM Bosch Support
MEG17.9.2 TCM Bosch Support
Launch X431 ECU & TCU Programmer support list

How To Use X431 ECU& TCU Programmer PC Software?

Part I: How to Activate?

Download software at https://en.cnlaunch.com/download. (Different versions requires different software)

Connect X-PROG3 PC Adapter to computer.

Connect X-PROG3 PC Adapter to X-PROG3.

(Direct connect standalone version to computer )

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-2

Serial number will be auto identified by software.

Enter activation code, and you can find it in envelope of package.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-3

Select “Activate”, and no need to activate it again later.

Part 2.How to R/W and Process Data?

1)R/W data

Select brand>model>engine>ECU

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-4

or Search ECU type.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-5

Check diagrams on “Straight Connection Line Diagram”.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-6

Connect device to ECU by bench line or adapters.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-7

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-8

Read chip ID.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-9

Back up EEPROM data.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-10

Back up Flash data.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-11

Restore EEPROM/ FLASH data.

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-12

2)Process data

Select Data Processing>>ImmobilizerShutoff and File Checkout>>Data Cloning

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-13

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-14

File verification and anti-theft shutdown. (process: select file > connect network to obtain > save file)

launch-x-431-ecu-tcu-programmer-activation-functions-support-list-15

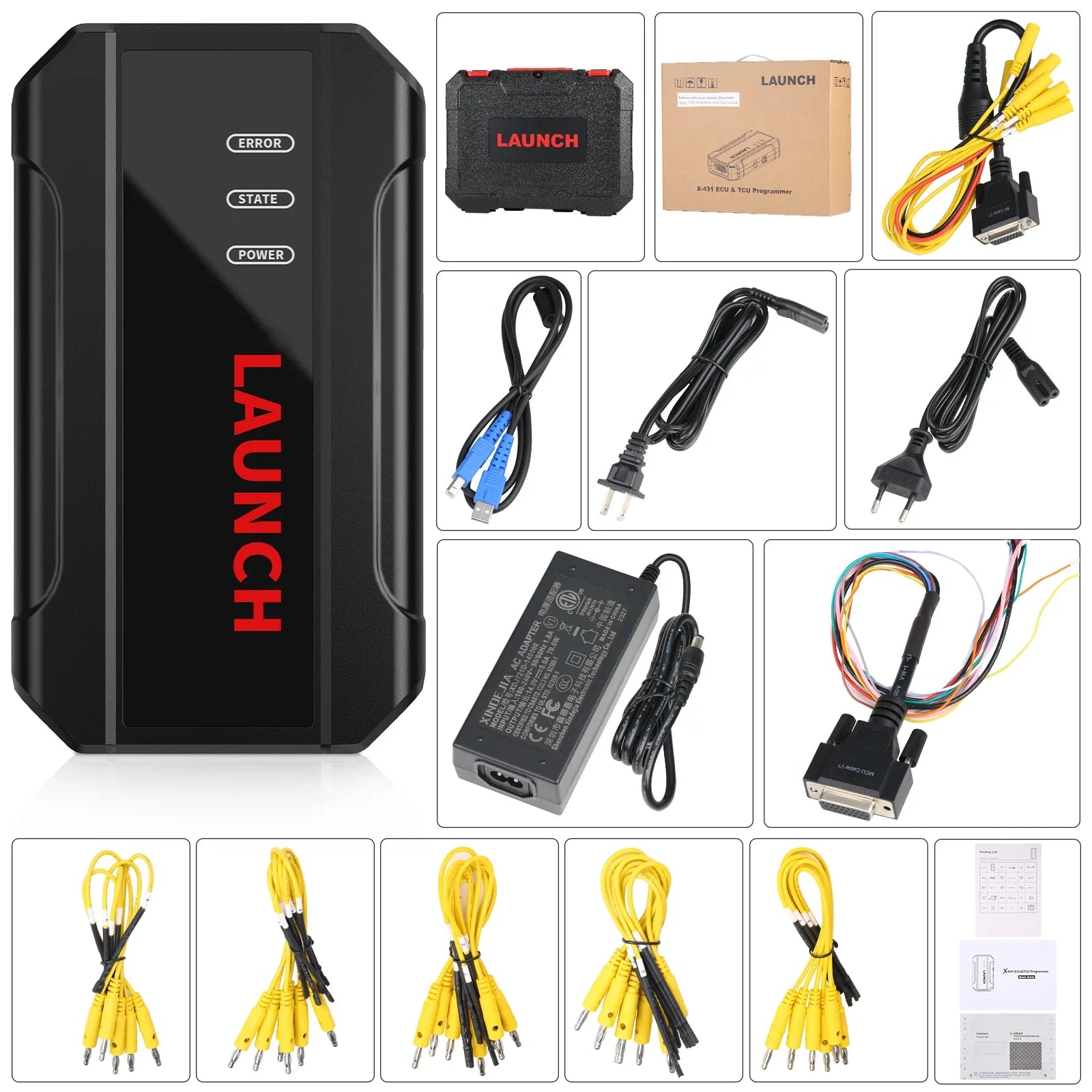

Package Includes:

1pc x LAUCH X431 ECU Module Cloning Device Overseas Online Configuration

Download ECU Clone PC Setup (EN):  https://dlcenter.xmycar.com/public/downloadLatestPublicSoft.action?pdtTypeId=2713&softName=ECUCLONE_PC_SETUP&softType=5&lanId=1001&checkState=2&isEncryptFlag=1
