TOPDON - PRO - Phoenix Pro Automotive Diagnostic Scan Tool - SCAN TOOLS

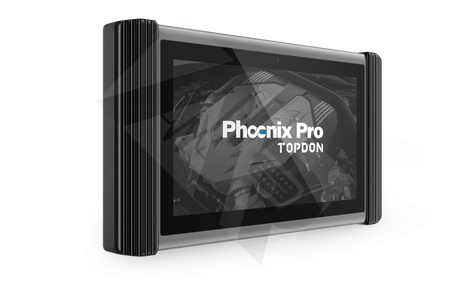

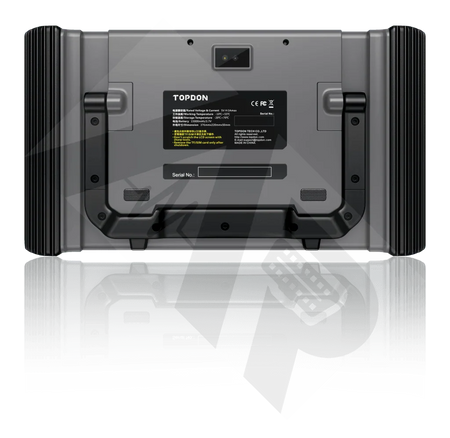

TopDon Phoenix Pro is an evolutionary smart solution for passenger car diagnosis based on the multitask-capable Android operating system. Using the powerful 8-core 2.0GHz processor and a 12 inch HD capacitive touch screen, combined with the best possible coverage of OEM-level diagnostics. Phoenix Pro delivers quick & complete diagnostic functionality which helps to diagnose vehicle issues more efficiently, significantly decreasing downtime and increasing your revenue. Phoenix Pro also has functions of vehicle diagnosis (Intelligent Diagnostics, Local Diagnostics & Remote Diagnostics), oscilloscope, ignition scope, sensor simulator, multimeter, battery test, videoscope and browser etc. HDMI extending display function is available. As a result, it has strong practicability and high performance-price ratio, which is a powerful assistant for vehicle repair and maintenance.

FEATURES

• Exceptional OE-Level functionality from comprehensive OBD2 diagnostics & services to advanced ECU coding and programming
• Interactive Data Logging sessions enable direct contact with professional tech support for first-hand troubleshooting of diagnostic bugs and errors
• 12 inch HD capacitive touch screen
• Rubberized outer protection and rugged internal housing, this tool is built for daily use in a shop environment
• USA based tech support with industry leading 1 hour callback promise.
• Special functions including: • OIL RESET • SAS RESET • EPB RESET • IMMOBILIZER • INJECTOR CODING • SUNROOF RESET • GEARBOX • EGR ADAPTION • DPF RESET • ABS BLEEDING • TPMS RESET • BMS RESET • AFS RESET • SUSPENSION RESET • GEAR LEARN • THROTTLE MATCHING
• Module replacement
• Module Programming
• Personalization functions
• Automatic power-off to preserve battery life
• Modular design allows for future capability expansions
• Excellent up-close visual inspections in confined areas, such as engine cylinders and minor part inspections

EXTENSIVE COVERAGE: This exceptional OE-Level functionality diagnostic scanner is available for over 80 1996 US-based, 2000 European-based and newer OBDII protocol vehicles with full OBDII functions, 11 unique services, and complete systems diagnosis

TECHNICAL SUPPORT: This diagnostic tool supports first-hand troubleshooting of diagnostic bugs and errors. One-stop multitasking design for ideal management of workshop operations to keep all data files, customer information, and vehicle records well organized

SPECIFICATIONS

Operating System: Android 5.1.1

Processor: 8-Core 2.0GHz processor

Memory: 2GB RAM & 64GB Embedded Memory

Display: 12” Display with 1920x1200 resolution and capacitive touch screen

Connectivity: 802.11a/b/g/n/ac WIFI, 2.0 3Mbs Bluetooth, RJ45 Ethernet Connection, 2.0 USB, HDMI 1.4a, SD Card (supports up to 128GB)

Camera: Rear: 8.0 Megapixels, Autofocus with Flashlight, Front: 2.0 Megapixels

Sensors: Gravity Accelerometer

Audio Input/Output: Microphone, Dual Speakers, 3.5mm stereo/standard headset jack

Power and Battery: 3.7V/15000mAH Lithium-polymer battery

Input Voltage: DC/5V/3A

Power Consumption: Max 20W

Operating Temperature: 14℉ - 131℉ ( 10°C - 55°C)

Dimensions:14.80” x 8.6” x 1.96”

Weight: 4.62 LBS.

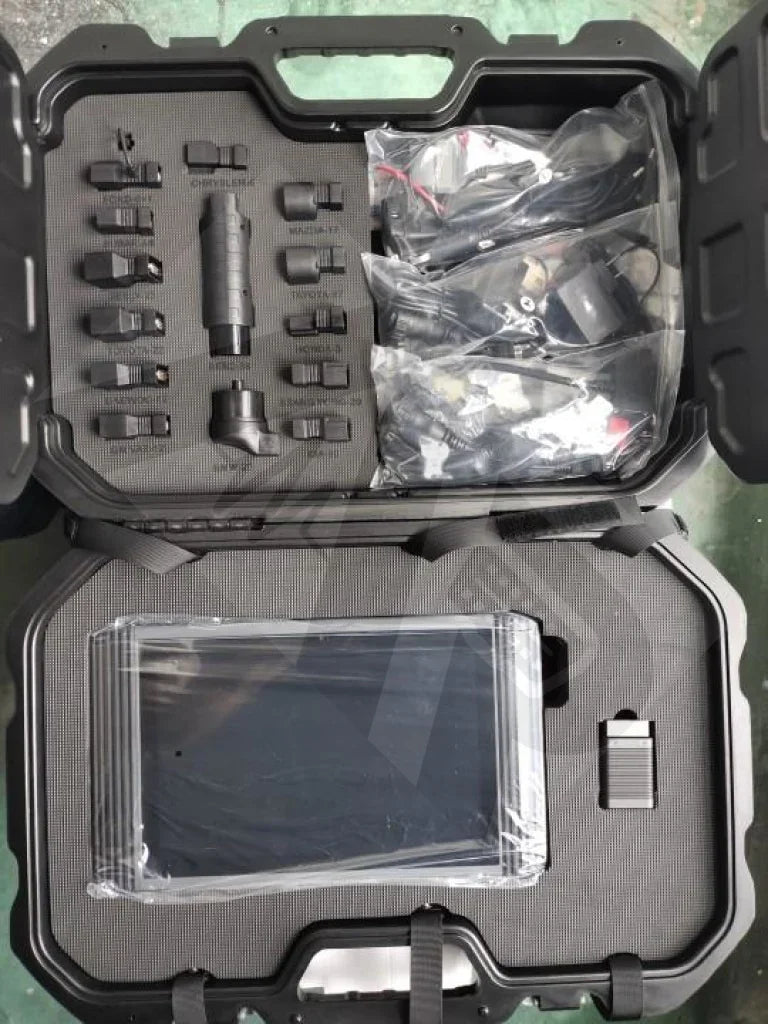

PACKAGE LIST

1 - Phoenix Pro™ Tablet

1 - VCI Connector

1 - OBDII Extension Cable

1 - Power Adapter

1 - USB Cable

1 - OBDI Adapter

1 - Cigarette Lighter Charger

1 - Battery Clamps Cable

1 - Password Envelope

1 - Adapter Cable Kit

• Adapters of:
• AUDI-4
• BENZ-14
• BENZ-38
• BMW-20
• CHRYSLER-6
• DAEWOO-12
• DAIHATSU-4
• FIAT-3
• FORD-6+1
• GEELY-22
• GM/VAZ-12
• HONDA-3
• KIA-20
• MAZDA-17
• MITSUBISHI/HYUNDAI-12+16
• NISSAN-14+16
• SSANGYONG-14
• SSANGYONG-20
• SUBARU-9
• SUZUKI-3
• TOYOTA-17
• TOYOTA-22
• UNIVERSAL-3
