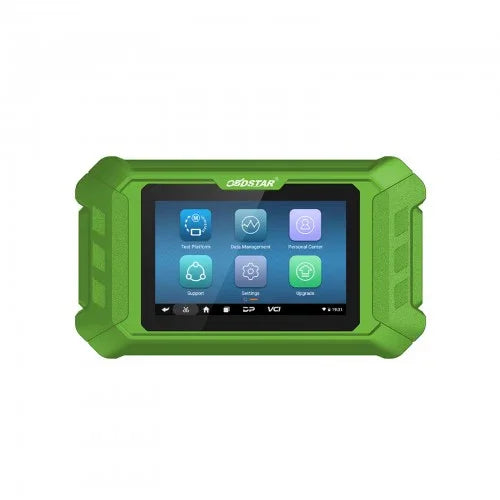

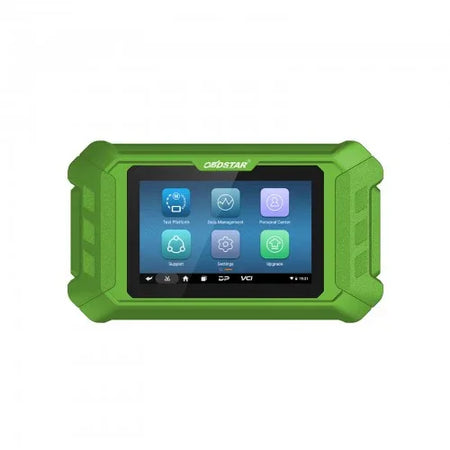

OBDSTAR MT501 Test Platform
OBD-MT501
MT501 is an automotive test platform by BENCH newly developed by OBDSTAR, which is multi-function in one, including dashboard power on, ABS power on, gear lever power on, A/C(air conditioning) panel power on and more.
It adopts the latest 3.0 APK operating platform, and is a good helper for automotive maintenance technicians.
One year update for free.
Support English only.
Development Background of MT501
Nowadays, many instruments, stereos, gear levers on cars are powered on via CAN BUS communication to make their hosts work. These hosts fail to be powered on when technicians repair or detect them on the platform without CAN BUS communication. Therefore, OBDSTAR developed MT501 to power them on the platform. Meanwhile, it makes repairing easier and saves a big cost for technicians.
MT501 with 1-year free upgrade is an automotive test platform by BENCH, which is multi-function in one, including dashboard power on, ABS power on, gear lever power on, A/C(air conditioning) panel power on and more. It adopts the latest 3.0 APK operating platform, and is a good helper for automotive maintenance technicians.
MT501 Features:
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Wi-Fi connection to the internet, one-click software upgrade;
4. Intelligent search, with help guide, easy to use.
MT501 Advanced Functions:
1. Support dashboard power on for below brands:
2) ABS Power On
3) Gear Lever Power On
4) Air Conditioning Panel Power On

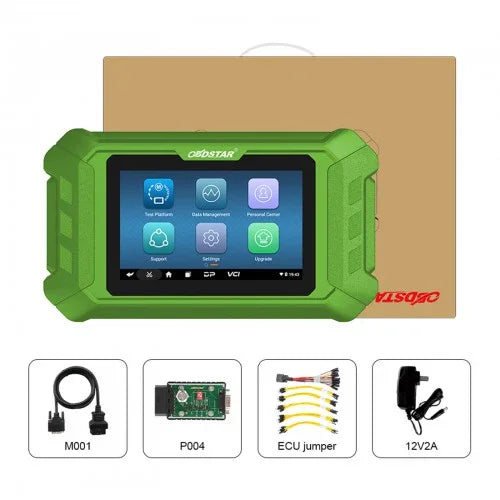

Package Includes:
1pc x MT501 Test Platform
1pc x M001 main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
It adopts the latest 3.0 APK operating platform, and is a good helper for automotive maintenance technicians.
One year update for free.
Support English only.
Development Background of MT501
Nowadays, many instruments, stereos, gear levers on cars are powered on via CAN BUS communication to make their hosts work. These hosts fail to be powered on when technicians repair or detect them on the platform without CAN BUS communication. Therefore, OBDSTAR developed MT501 to power them on the platform. Meanwhile, it makes repairing easier and saves a big cost for technicians.
MT501 with 1-year free upgrade is an automotive test platform by BENCH, which is multi-function in one, including dashboard power on, ABS power on, gear lever power on, A/C(air conditioning) panel power on and more. It adopts the latest 3.0 APK operating platform, and is a good helper for automotive maintenance technicians.
MT501 Features:
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Wi-Fi connection to the internet, one-click software upgrade;
4. Intelligent search, with help guide, easy to use.
MT501 Advanced Functions:
1. Support dashboard power on for below brands:
- AUDI
- BMW
- BENZ
- DODGE
- FORD
- JAGUAR
- LAMBORGHINI
- LAND ROVER
- PORSCHE
- ROLLS-ROYCE
- VOLKSWAGEN
- VOLVO
2. Support BMW G series A/C panel power on
3. Support LAND ROVER/JAGUAR gear lever power on
4. Support BENZ ABS power on
Function Display
1) Dashboard Power On
2) ABS Power On
3) Gear Lever Power On
4) Air Conditioning Panel Power On
MT501 Specification:
| Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 2600mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| LCD | 5.0 inch |
| LCD resolution | 800*480 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 700g |
| Dimension | 198mm*115mm*31mm |
Package Includes:
1pc x MT501 Test Platform
1pc x M001 main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
