ML52300 Thermal Imaging Camera

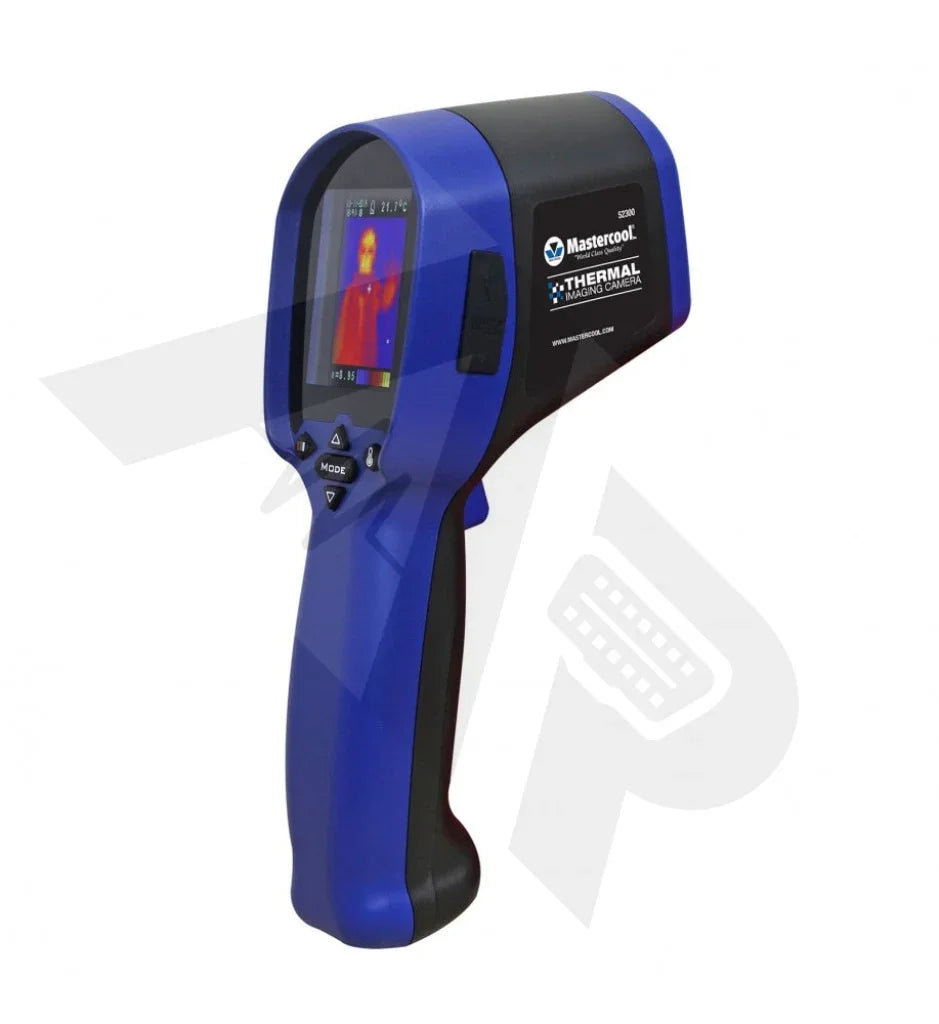

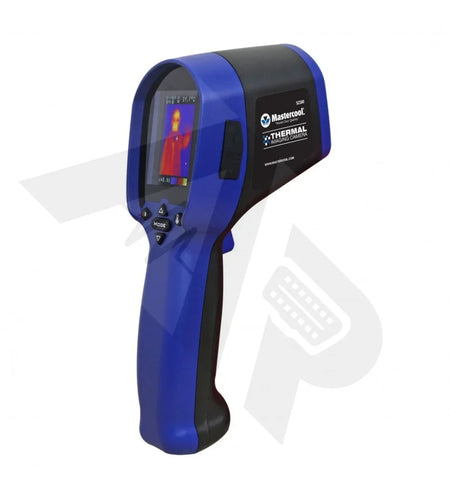

Mastercool ML52300 Thermal Imaging Camera

Take Temperature Measuring To Another Level…

Mastercool’s Thermal Imaging Camera Can Measure From -20 To 250*C (-4 To 482ËšF) And Display Thermal Images And Temperature. Thermal Images Can Be Saved To A Micro SD Card And Transferred To The Software Included For Image Reporting.

• Fully Automatic
• Focus Free
• Superior Measurement/Accuracy
• Micro SD Card Storage
• Reporting Software Included

Automotive Applications:

• Tire Contact And Wear Diagnostics
• Brake And Engine System Evaluation For Performance And Cooling
• Rotor Temperatures And Wear Patterns
• Faulty Fuel Injection Nozzles
• Faulty Wheel Bearings
• Passenger Compartment AC Comfort Analysis
• Proper Fluid Temperatures, Static And Full Load
• Rear Differential Temps
• AC Liquid And Gas Lines And Hose Analysis
• Turbo Chargers And Catalytic Converters
• Evaporators, Condensers And Radiators For Proper Heat Exchange

SPECIFICATIONS:

• Thermal Image Resolution: 32 X 31 Pixels
• Measurement Range:-20 To 250ËšC (-4 To 482ËšF)
• Accuracy (Tamb=20 To 26ËšC): ±2% Of Reading, Or 2ËšC (4ËšF) Whichever Is Greater
• Thermal Sensitivity: 0.1ËšC
• Frame Rate: 9 Hz
• Field Of View: 40 X 40 Deg
• Emissivity Range: 0.95 Default – Adjustable 0.1 To 1 Step 0.1
• Focus: Focus Free
• LCD Size: 2.8” (71 Mm)
• LCD: Color
• Image Storage: Stores Up To 25,000 Images Per Gb, Bmp File Format
• Memory Type: Support 8G Micro SD Card
• Sensor Filter: 8 To 14 Um
• Interface: USB
• Battery Type: (4) AA
• Battery Life (Hr) (Backlit): 6 Hours
• Dimensions: 5.7” (L) X 2.8” (W) X 9.3” (H) (145 X 71 X 236 Mm)
• Weight: 11.5 Oz (0.33 Kg)
