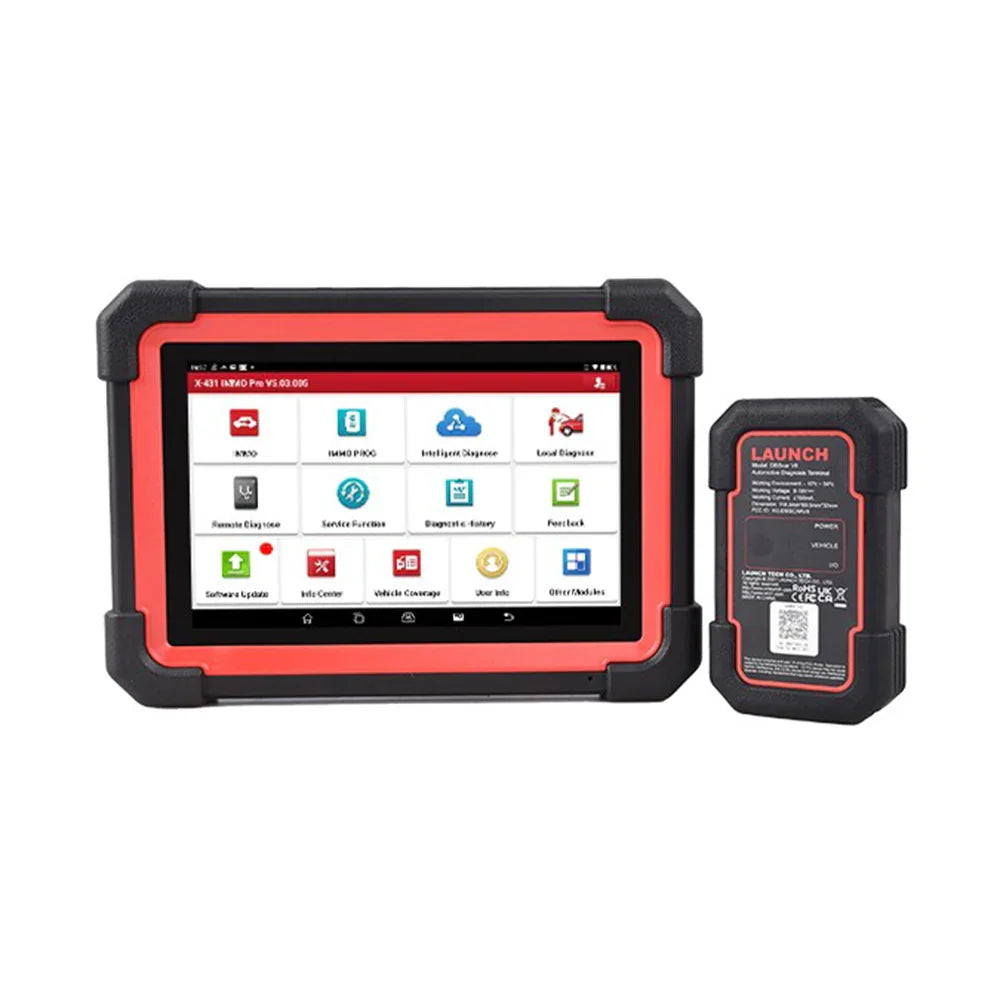

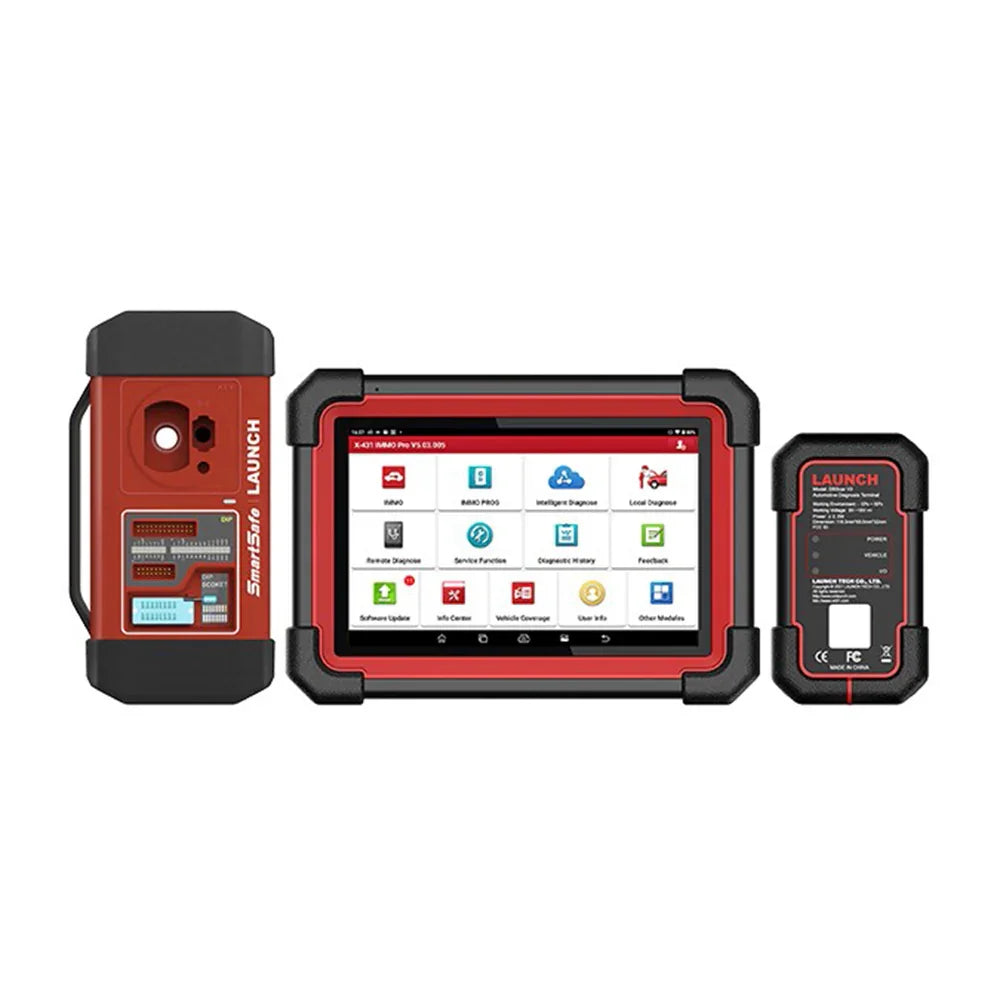

X-431 IMMO Pro - Professional Immobilizer & Diagnostic Scan Tool

X-431 IMMO Pro

X-431 IMMO Pro is Wi-Fi enabled and super advanced scan tool with upgraded all-in-one SmartLink VCI. One is enough for most of repair shops who has business in relation with ADAS calibration, Truck diagnosis, Remote diagnostic, OE-level vehicle diagnosis, IMMO functions and more.

Features:

• Full System & Full Function Diagnosis
• Auto Detect Vins in Minutes
• Bi-Directional Control / Remote Diagnostic Function
• Dual Band 5G & 2.4 G Wireless Connection with Ultra-Fast Speeds
• Advanced Vehicle protocols including DOIP, CANFD ETC
• Support X431 Fix Repair Information. Driven By Motor
• Code Assist Database By Identifix
• SGW Security Gateway Approved By FCA with AutoAuth
• Pin detection function to detect Pin volt, Data Rate and protocols
• More available software can be purchased via In-APP mall
• Build-in passenger car software, truck software purchase alone
• One-click upgrade for car models software
• Non-16 pin passenger car adapter cable kit covered
• Support USB Type C, USD Type A interface, Etc.

Specs:

•  Android 10.0
•  10.1 inch touch screen 1280*800
•  Rear 8 MP, Front 5 MP
•  Battery: 47880mWh (7.6V, 6300mAh)
•  CPU 2.0 GHz Quad-core
•  Memory：4GB Storage ：128GB
•  Working Temperature: -20℃--70℃-
•  Temperature: 0℃--50℃
•  Connectivity: WIFI/Bluetooth
•  Size: 274*190*40.5 (mm) / 10.79*7.48*1.59 (inch)
•  Weight:  1.45 kg

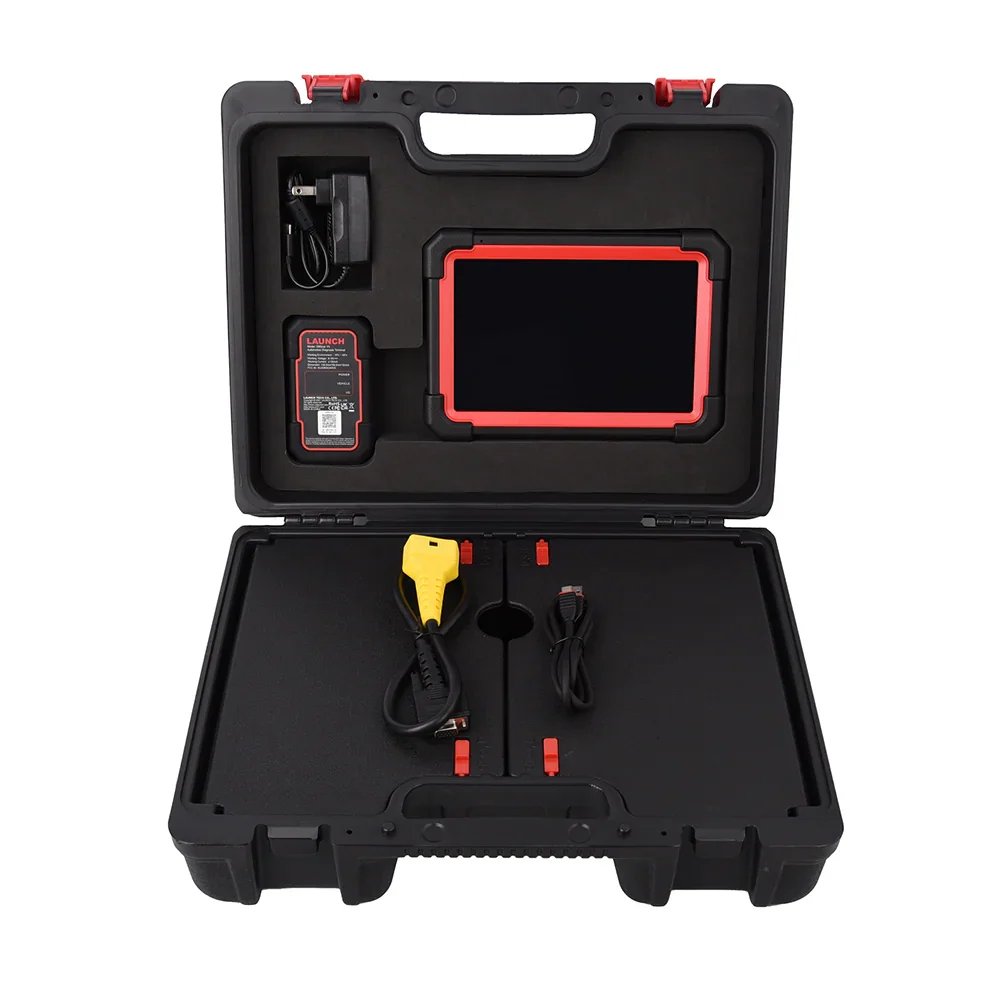

Package Contents:

•  Power adapter, 5V / 5A,
•  USB A-type to B-type cable
•  Six Kinds of Gigabit Networks (Blue)
•  Type A to type C USB data cable
•  OBD16 male to HDB15F test main line (with DC)
•  HD15M to OBDII 16 male integrated test connector
•  Multilingual quick start,
•  Universal PIN envelope
•  Front camera host 4 +128


Advantages

• Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
• Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
• Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
• Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
• Supports BMW E chassis 8HP gearbox ECU program wiping.
• Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
• Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
• Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
• Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
• Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.

Functions
Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.

Anti-theft modules replacement

• Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc

Anti-theft password reading
Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.

Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc
