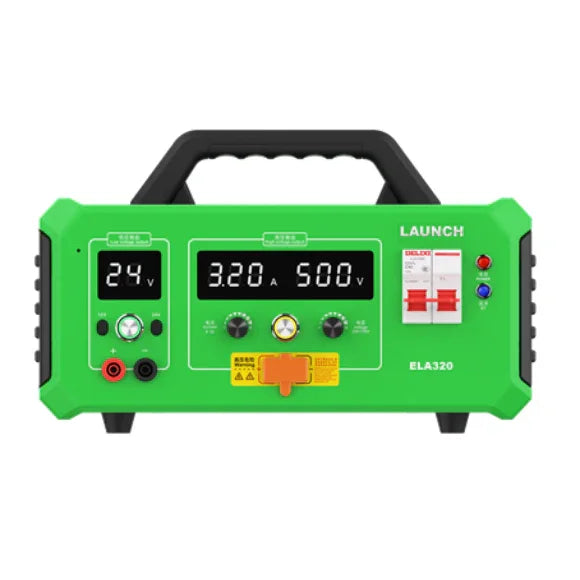

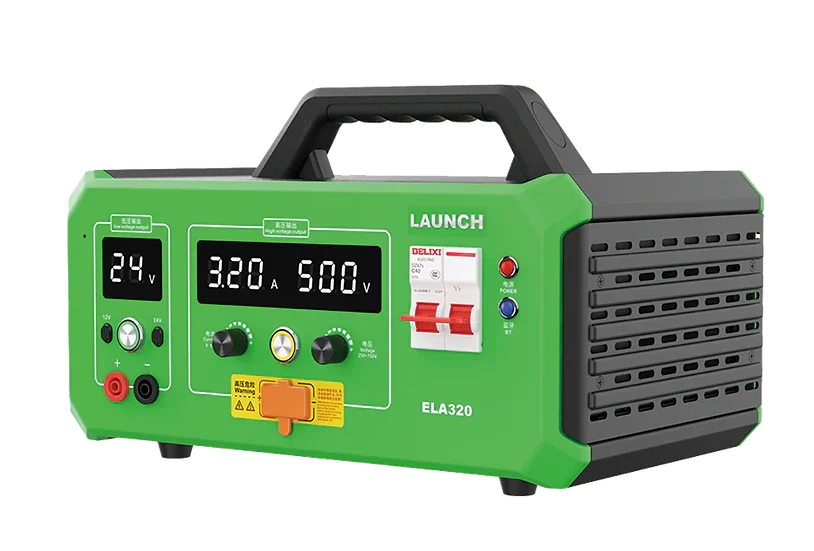

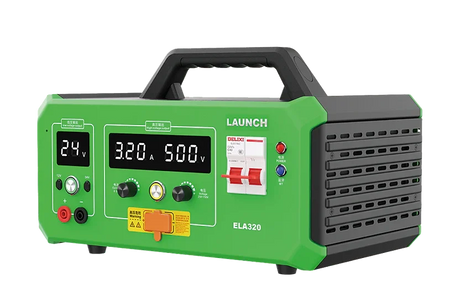

Intelligent Digital Power Supply

LT-ELA320

$2,995.00
Unit price per

Shipping calculated at checkout.

ELA320 is an intelligent digital power supply for the maintenance of new energy and fuel vehicles. It has stable current output, excellent performance indicators, and a variety of protection mechanisms. It is a digital power supply with high reliability and high efficiency, which is safe and easy to use.

It is suitable for the maintenance of new energy vehicles and fuel vehicles, and is used for maintenance testing of electrical components.
The high-voltage module and low-voltage modules can be managed, maintained and monitored separately. The power output is protected separately and the high-voltage and low-voltage outputs will not interfere with each other.
It has separate protection for input circuit, high-voltage output circuit and low-voltage output circuit, which can detect faults such as undervoltage, overvoltage, overcurrent and short circuit etc.
Supports protection alarm for faults such as polarity reverse connection, current limiting, short circuit overcurrent, overtemperature, overvoltage and undervoltage etc.
Built-in cooling fan with intelligent temperature control.

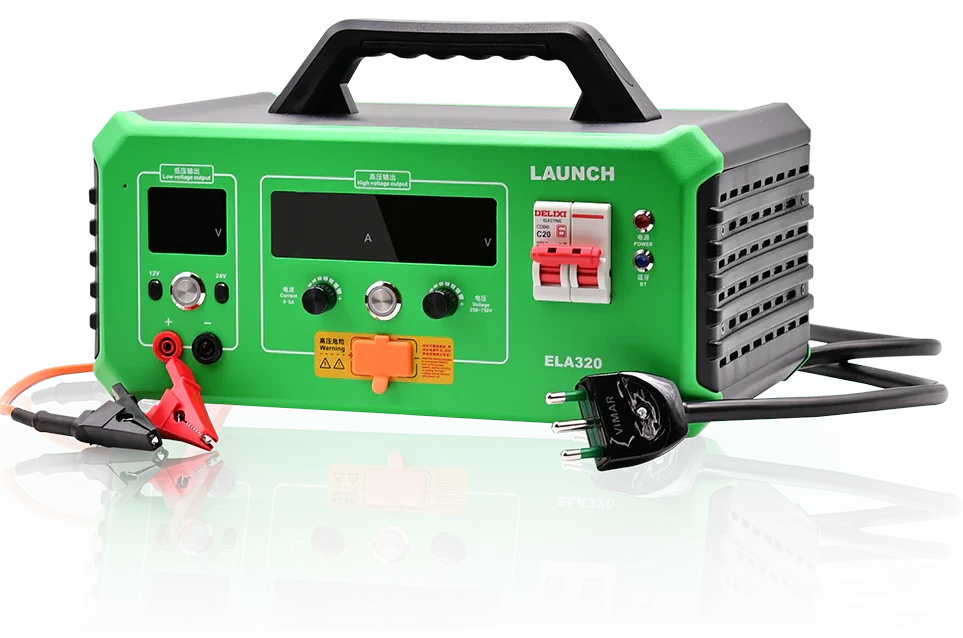

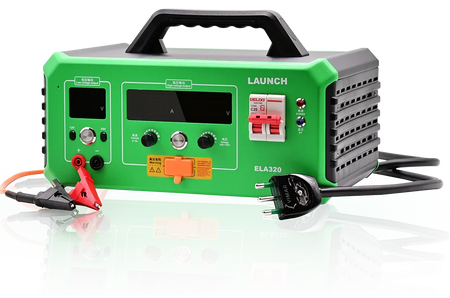

INTELLIGENT, DIGITAL POWER SUPPLY

The ELA320 is an intelligent, digital power supply designed for the maintenance of vehicles with high-voltage batteries. It is suitable for servicing and testing high and low voltage electrical components including electric air conditioning compressors, DC/DC modules, PCT heaters, electronic fans and power steering pumps.

INDEPENDENT PROTECTION MECHANISM

IN CONJUNCTION WITH X-431 EURO TAB III

WIRELESS CONTROL

High-voltage and low-voltage circuits

The high and low voltage circuits are separately fused and can be operated separately. Circuits can be managed, maintained and monitored separately.

Wireless control of synchronized operation

Wireless control of synchronized operation via Bluetooth with the X-431 TAB III. When the unit is connected, the current power supply mode, high/low voltage output conditions, setting parameters and other data are synchronized in real time.

Independent protection mechanism

For the input circuit, the high voltage output circuit and the low voltage output circuit. The system detects faults such as undervoltage, overvoltage, overcurrent, short circuit and initiates the appropriate protective measures. In addition, an audible alarm is triggered in the event of a fault.

FEATURES

It is suitable for the maintenance of new energy vehicles and fuel vehicles, and is used for maintenance testing of electrical components.
The high-voltage module and low-voltage modules can be managed, maintained and monitored separately. The power output is protected separately and the high-voltage and low-voltage outputs will not interfere with each other.
It has separate protection for input circuit, high-output circuit and low-voltage output circuit, which can detect faults such as undervoltage, overvoltage, overcurrent and short circuit etc.
Built-in cooling fan with intelligent temperature control.

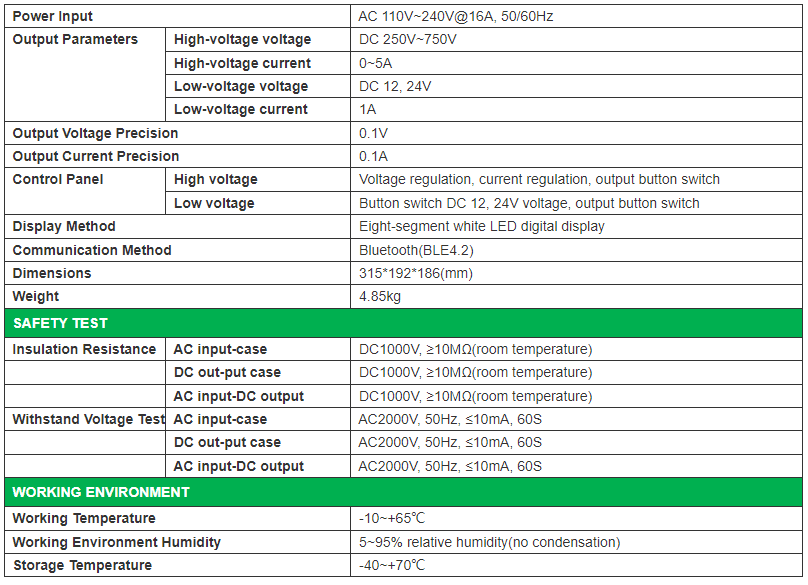

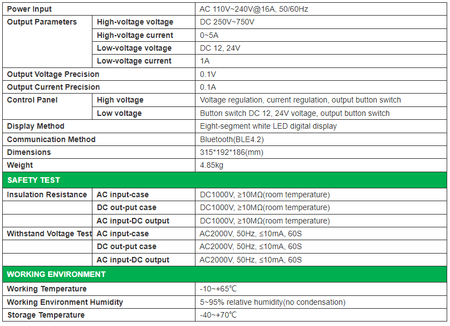

PRODUCT SPECIFICATIONS

Power Input: AC 110~240V@16A, 50/60Hz
High-voltage voltage: DC 250~750V
High-voltage current: 0~5A
Low-voltage voltage: DC 12, 24V
Low-voltage current: 1A
Output Voltage Precision: 0.1V
Output Current Precision: 0.1A
Hight Voltage: Voltage regulation, current regulation, output button switch
Low Voltage: Button switch DC12, 24 V voltage, output button switch
Display Method: Bluetooth (BLE4.2)
Dimensions: 315*192*186(mm)
Wright: 4.85Kg
Working Temperature: -10~+65°C
Working Environment Humidity: 5~95% relative humidity (no condensation)
Storage Temperature: -40~+70°C
