Premium Round Pin Terminal Connector Set
As low as $125/mo with Approve or QuickSpark business leasing. Shop Pay Installments and PayPal Pay Later also available at checkout.
Couldn't load pickup availability
Ask an Expert
Need help?
Call or Text Sales: (919) 408-7320
Support Text: (919) 619-5558
Email: sales@autorescuetools.com

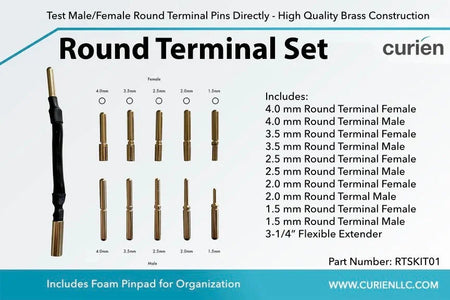

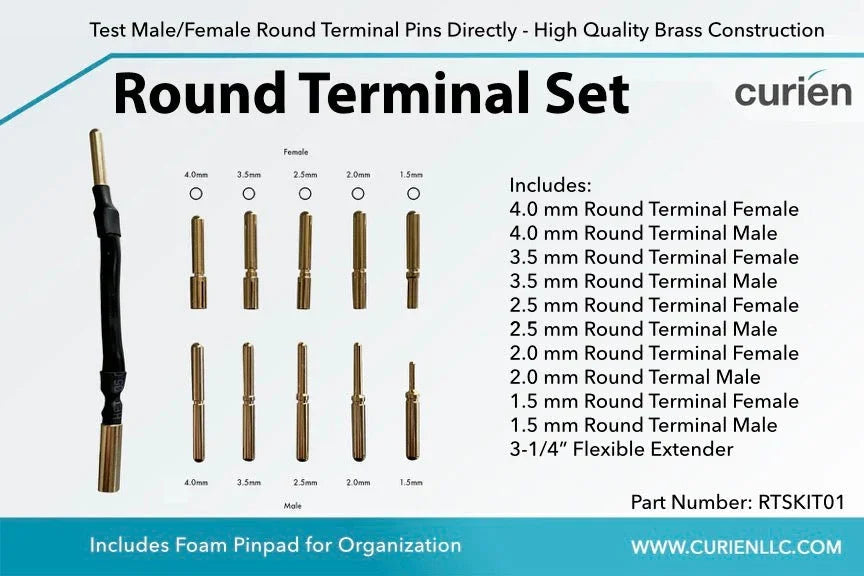

The Round Pin Terminal Connector set is gold plated and has both male and female pins to direct connect to specific pins or fit into female pin slots on any round connector. The kit also includes a female spade slot adapter to fit male spade connectors.
The Round Terminal Set is made from Solid Brass Construction and will not bend or flex out of shape like other terminal sets. The male and female sizes are:
-
1.5mm
-
2.0mm
-
2.5mm
-
3.5mm
-
4.0mm
The kit also includes a 3" flexible extender to allow you to connect to pins in deep connectors.

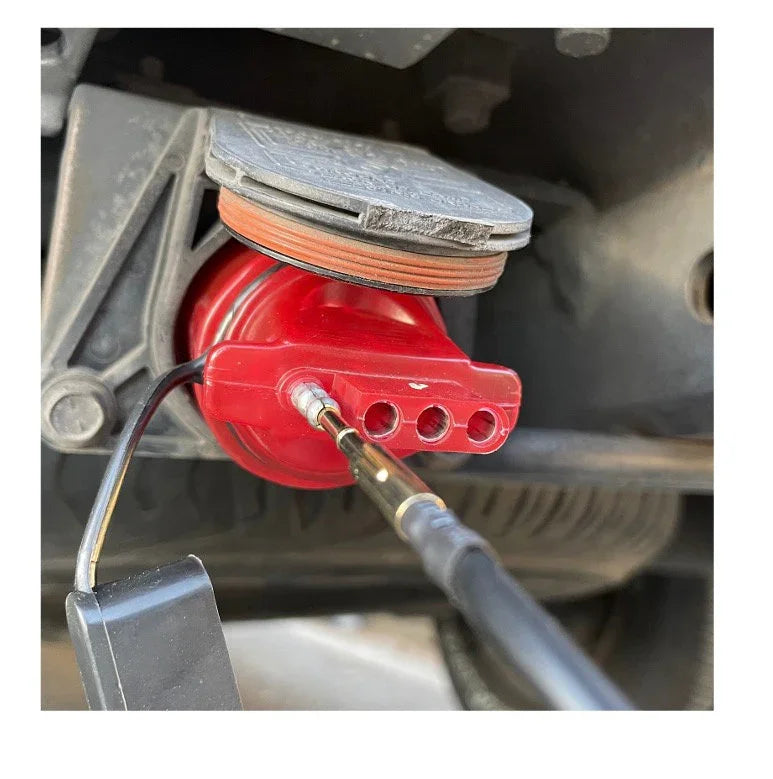

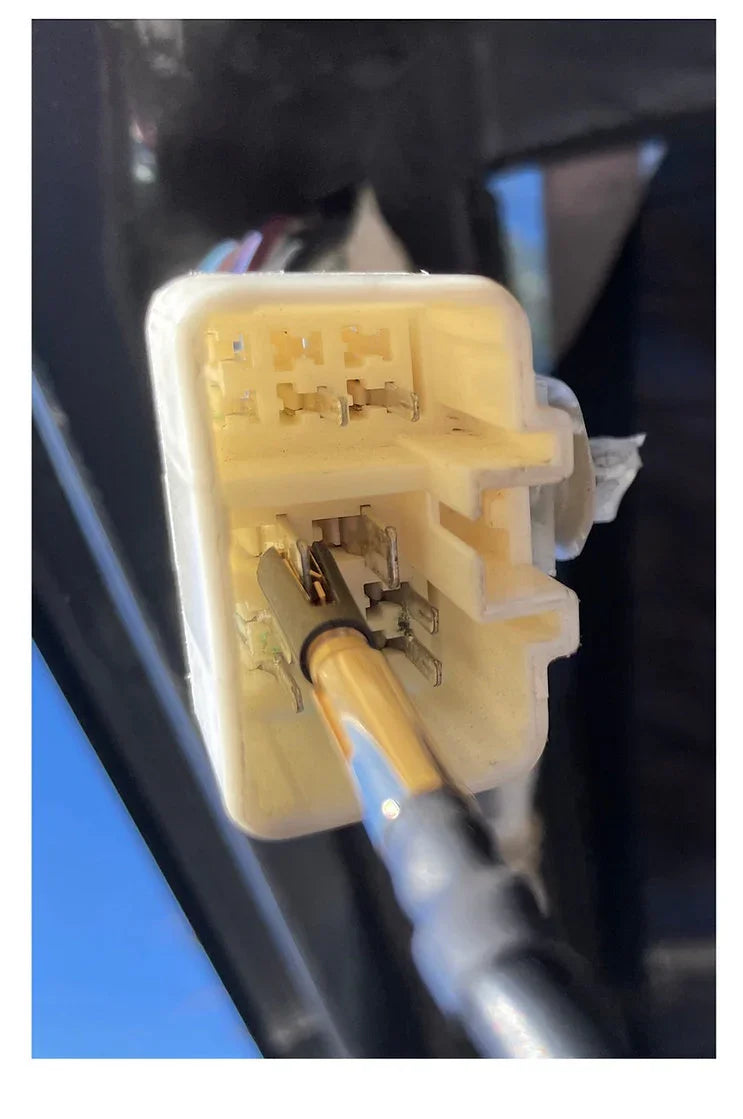

This kit is great for connecting directly to sensors, ECM's, or other connectors to slide directly into the circuit connector without attempting to back probe the wiring and/or damage the terminal fit of the connector or seals after you are done.

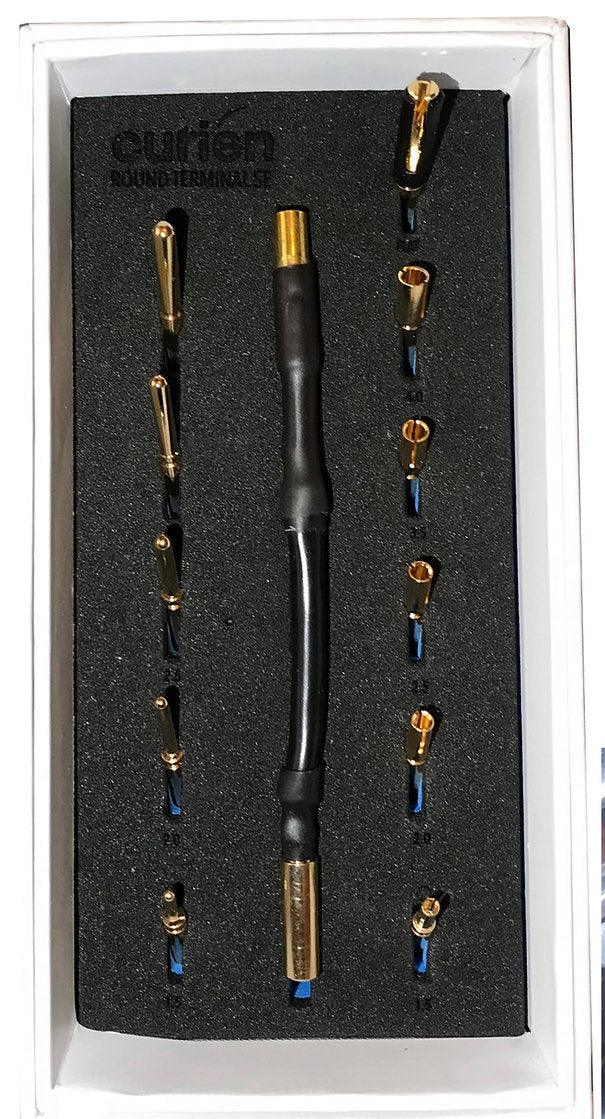

Foam peg pad included.
