X-431 IMMO Pad - All-in-one Key Programming & Advanced Diagnostic
LT-X431IMMOPADX-431 IMMO PAD
Features
Intelligent Diagnostics
1. All systems OE-Level diagnostics for over 110 vehicle models.
2. Exceptional full functionality includes comprehensive OBD II diagnostics, bi-directional control, ECU coding & programming, etc.
3. Support CAN/CANFD/DoIP communication protocols and J2534 communication standards.
4. Exclusive Smartlink remote diagnosis.
5. 25 advanced service functions.
6. Pre-scan and post-scan diagnostic report.
7. Expand diagnostic coverage via “Mall”.
8. Optional ADAS calibration function with the X-431 ADAS calibration tools.
9. Optional TPMS function with X-431 TSGUN.
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxes.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.
Functions
1. Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Anti-theft modules replacement
Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc.
3. Anti-theft password reading
Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.
4. Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc.
Specification

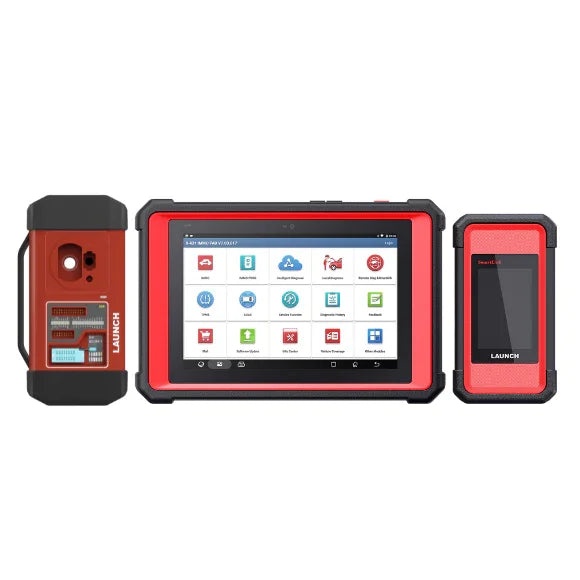

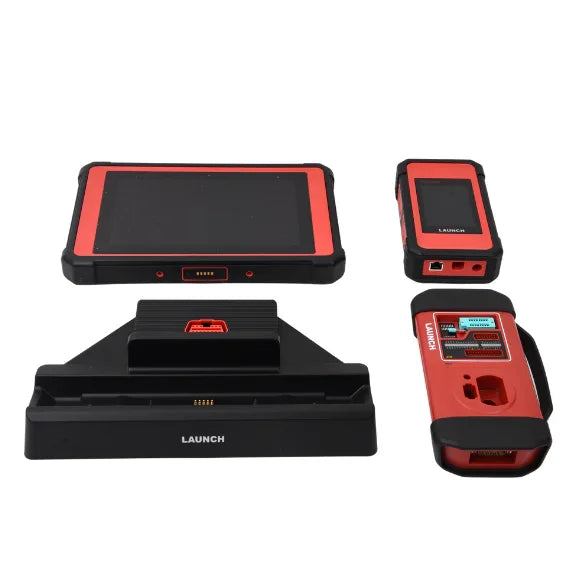

X-431 IMMO PAD Tablet
|
Processor |
2.0GHz, Octa-Core |
|
Operation System |
Android 7.1 |
|
Memory |
4GB |
|
Storage |
64GB |
|
Battery |
9360mAh |
|
Display |
10.1'', 1920*1200 |
|
Camera |
Front 8MP, Rear 13MP |
|
Protection |
IP65 |
|
WIFI |
2.4GHz/5GHz |
|
Interface |
TYPE A *1 & TYPE C*1 |
|
Working Temperature |
0~50℃ |
|
Dimension |
320 x 211 x 46mm |
SmartLink C VCI
|
Display |
3.97“ single-touch screen, 320*480 |
|
Memory |
256MB |
|
Storage |
8GB |
|
Remote Communication |
WIFI / Ethernet |
|
Working Voltage |
DC 9V – 36V |
|
USB |
Type B USB2.0 |
|
Power Consumption |
<6W |
|
Work Temperature |
0~50℃ |
|
Dimension |
204 * 110 * 45mm |
X-PROG 3
|
Interface |
DB26, DB15 |
|
Input Voltage |
DC12V |
|
Input Current |
500mA |
|
Working Temperature |
0~50℃ |
|
Storage Temperature |
-20~70℃ |
|
Vehicle Key Slot |
To place car key for RF defection |
|
DB26 |
Used to connect to each anti-theft cables |
|
Infrared slot for Benz key |
Used to place the Mercedes-Benz infrared key to perform the key matching function |
|
Key IC hole |
Used to place the key chip to perform the key matching function |
|
Status Indicator |
Power supply indicator lamp |
|
DIY Slot |
Used to connect the anti-theft ECU pin through the cable to read and write data |
|
Locker |
To tighten loose EEPROM board |
|
DC 12V |
Used to connect to the DC12 power supply |
|
DB15 |
To connect with vehicle’s DLC |
|
EEPROM Slot |
To insert EEPROM board |
