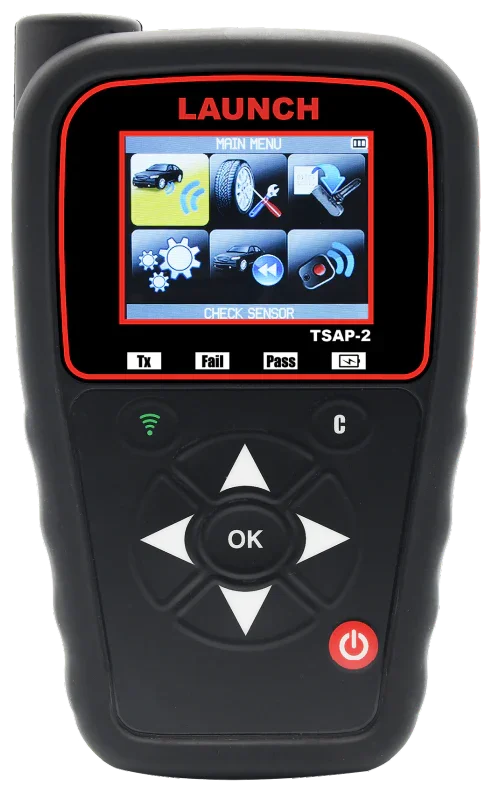

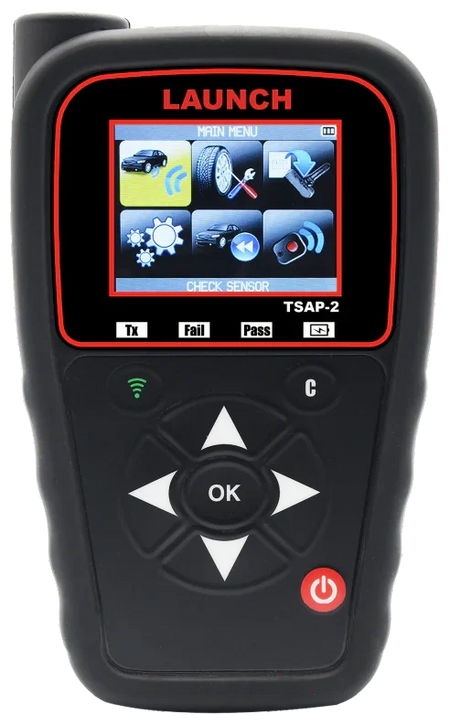

TSAP-2 TPMS Tool w/ 40 LTR-01 Sensors (Rubber stem only)

TPMS tool for DIYers and technicians, is designed to activate, read and service major OEM and after marker  sensors, Quarterly updates allow for the newest TPMS sensors to be added to the tool. it is the perfect partner for servicing TPMS

Product Specifications

• Screen Size:   2.8 Inch
• MAKE.MODEL, YEAR LOOK-UP  Yes
• ACTIVATE 100% OF OEM SENSORS  Yes
• PROGRAMS MULTIPLE BRANDS OF AFTERMARKET SENSORS Yes
• Wi-Fi UPDATABLE:  No

Features

• Display all TPMS sensors data on screen
•  Program over 20 aftermarket sensors
•  Read and activate TPMS sensors
•  Perform 200+manual relearns
•  Lookup TPMS sensors part numbers
•  Test/Diagnose vehicle keyfob
•  Activates both 315 & 433 Mhz sensors
•  Install & service TPMS retrofit kits
•  Service motorcycles & dually vehicles
•  Select from over 23 language options

TPMS Sensor Description

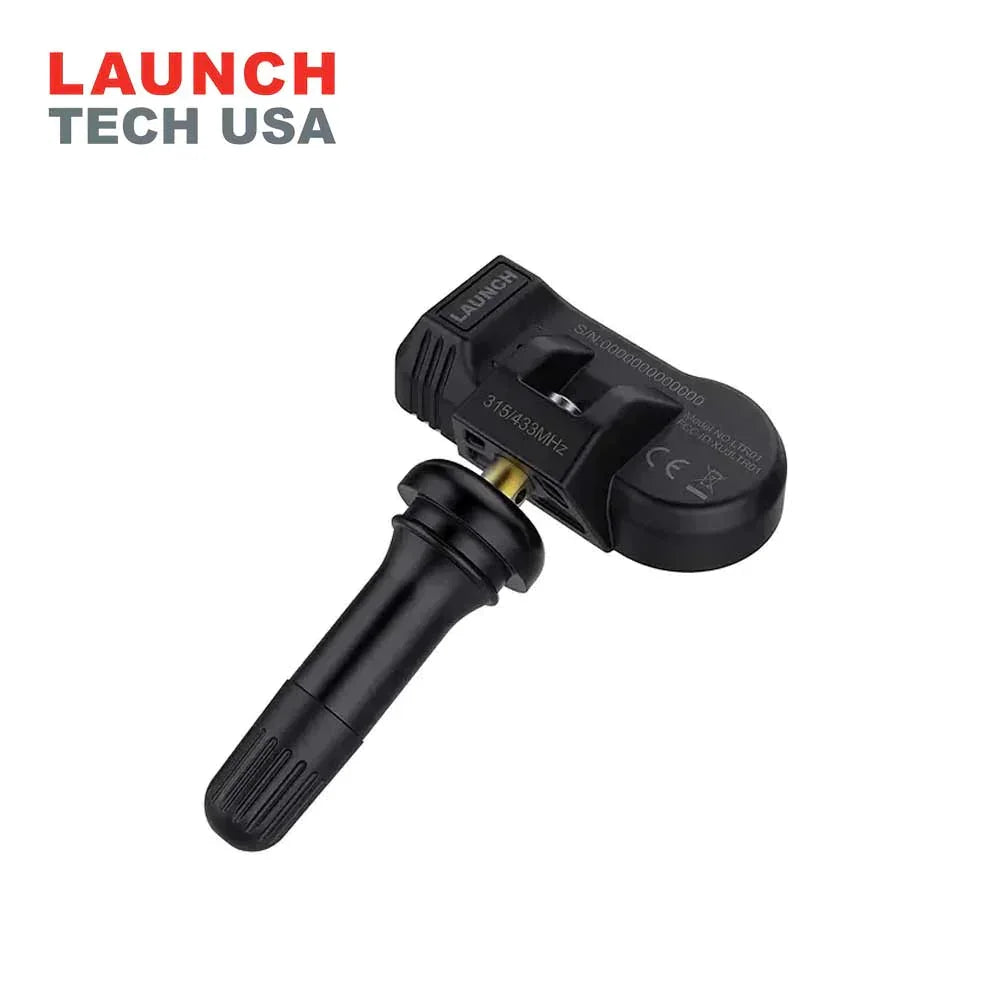

LTR-01 is Launch own designed and produced RF Sensor to offer the best TPMS solutions for any repair shop or tire shops. With the outstanding and reliable OE level performance, LTR-01 can replace all original tire pressure sensors, copy the original tire pressure sensor data and can be programmed indefinitely.

Product Specifications

• Support 315MHZ and 433MHZ;
• Unlimited programming;
• The sensor is compatible with more than 98% of the car models in the market, and supports all original tire pressure systems;
• Support LOS, WAL, PAL, SAL and WASP automatic positioning technology;
• The nut torque is 4Nm, and the screw torque is 12Nm;
• Sensor working problem -45°C-125°C, working pressure 0-900KPa;
• Use Panasonic high-capacity battery and stable NXP chip;
• Operation Frequency:  315Mhz/ 433 Mhz
• Battery Voltage:      3.0V
• RF Transmitter Power:   5-8 dBm
• Storage Temperature :  -40℃--125℃
• Working Temperature : -40℃--125℃
• IP Rating:  IP 67
• Dimension: 50.8*24*17.8 mm
• Weight:   42g (Metal)

Features

• Compatible with more than 95% of OE Sensors in 315 Mhz /433 Mhz
• Able to replace all the OE tire pressure sensors,copy the OE sensor data and can be programmed for unlimited times
• The pressure value of LTR-01 can be accurate to 0.1 BAR with an international leading automotive -grade chip
• Over-the air wireless programming and battery life lasts for 4 to 6years
