LAUNCH USA - TSAP3W/80SEN - TSAP-3 TPMS Tool w/ 80 LTR-01 Sensors (Rubber stem only) - TPMS

Shipping calculated at checkout.

Log in to purchase

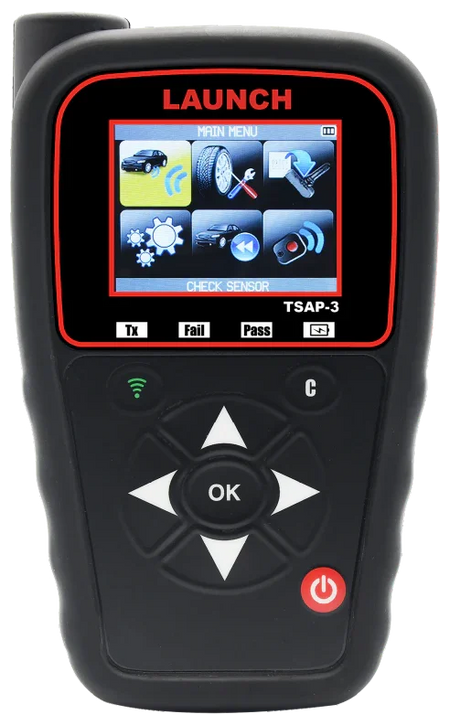

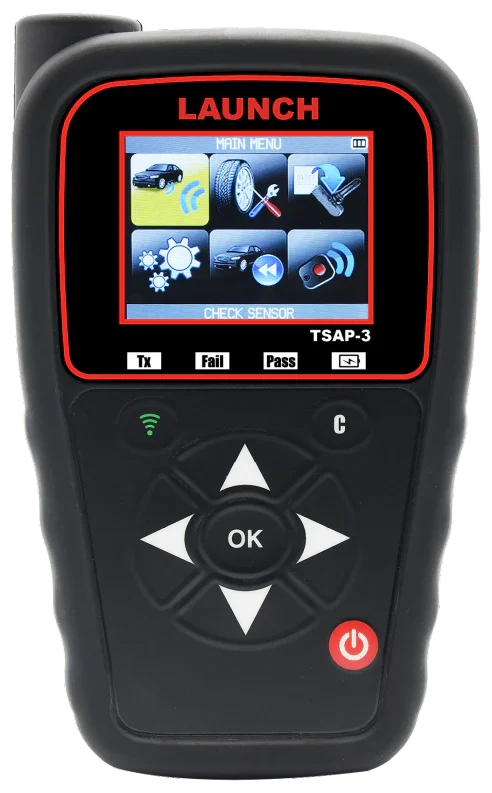

TSAP-3 TPMS Tool w/ 80 LTR-01 Sensors (Rubber stem only)



TSAP-3 is the ideal TPMS tool for DIYers, technicians and front counter workers. The tool is designed to activate, read and service major OEM and aftermarket sensors. It is capable of updating wirelessly via Wi-Fi allows for the newest TPMS sensors to be added to the tool.

Product Specifications

  • Screen Size:  2.8 Inch
  • OBDII CAPABLE:  Yes, External
  • MAKE, MODEL, YEAR LOOK-UP:  Yes
  • ACTIVATE 100% OF OEM SENSORS:  Yes
  • PROGRAMS MULTIPLE BRANDS OF AFTERMARKET SENSORS: Yes
  • Wi-Fi UPDATABLE: YES

Features

  •  Display all TPMS sensors data on screen
  •  Program over 20 aftermarket sensors
  •  Update wirelessly via Wi-Fi
  •  Activates both 315 & 433 Mhz sensors
  •  Read and activate TPMS sensors
  •  Perform 200+ manual & OBDII relearns
  •  Install & service TPMS retrofit kits
  •  Service motorcycles & dually vehicles
  •  Lookup TPMS sensor part number
  •  Test/ Diagnose vehicle keyfob

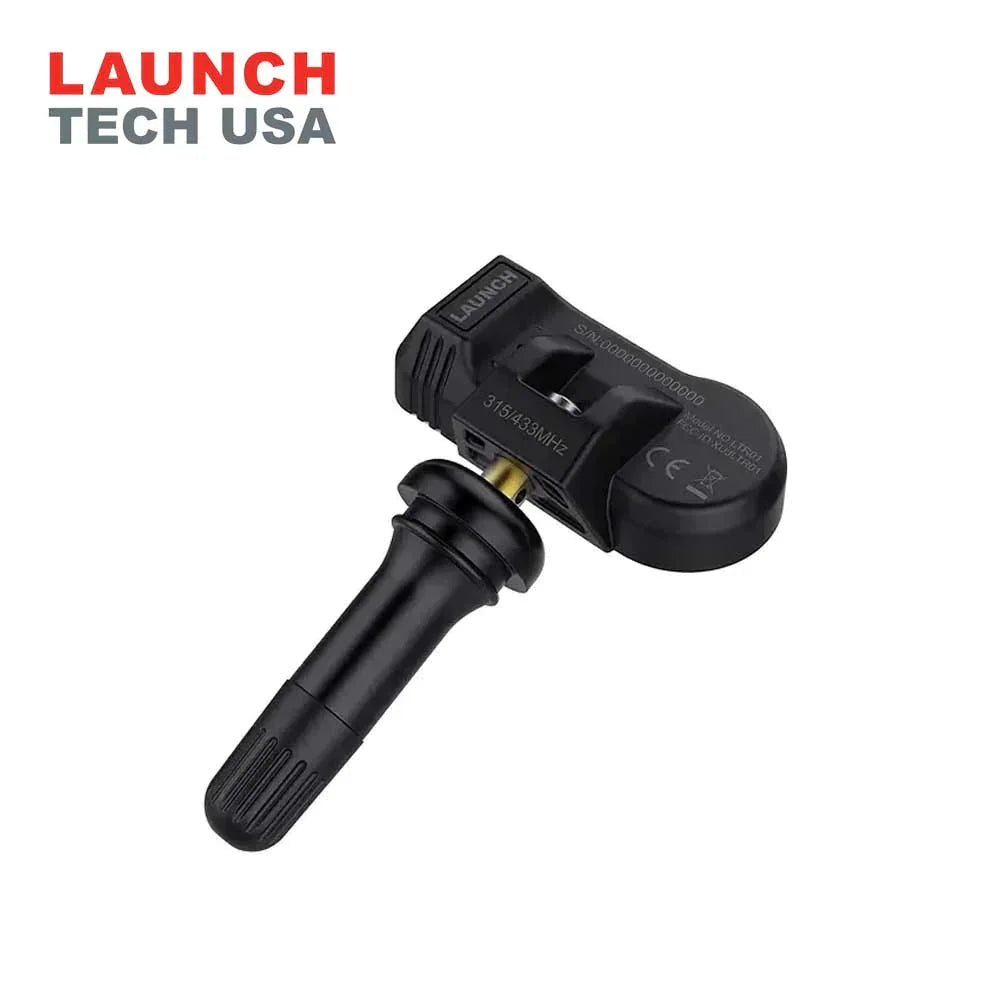

TPMS Sensor Description

LTR-01 is Launch own designed and produced RF Sensor to offer the best TPMS solutions for any repair shop or tire shops. With the outstanding and reliable OE level performance, LTR-01 can replace all original tire pressure sensors, copy the original tire pressure sensor data and can be programmed indefinitely.

Product Specifications

  • Support 315MHZ and 433MHZ;
  • Unlimited programming;
  • The sensor is compatible with more than 98% of the car models in the market, and supports all original tire pressure systems;
  • Support LOS, WAL, PAL, SAL and WASP automatic positioning technology;
  • The nut torque is 4Nm, and the screw torque is 12Nm;
  • Sensor working problem -45°C-125°C, working pressure 0-900KPa;
  • Use Panasonic high-capacity battery and stable NXP chip;
  • Operation Frequency:  315Mhz/ 433 Mhz
  • Battery Voltage:      3.0V
  • RF Transmitter Power:   5-8 dBm
  • Storage Temperature :  -40℃--125℃
  • Working Temperature : -40℃--125℃
  • IP Rating:  IP 67
  • Dimension: 50.8*24*17.8 mm
  • Weight:   42g (Metal)

Features

  • Compatible with more than 95% of OE Sensors in 315 Mhz /433 Mhz
  • Able to replace all the OE tire pressure sensors, copy the OE sensor data and can be programmed for unlimited times
  • The pressure value of LTR-01 can be accurate to 0.1 BAR with an international leading automotive -grade chip
  • Over-the air wireless programming and battery life lasts for 4 to 6years
