AUTOOL - CT500 GDI EFI FEI Fuel Injector Cleaner & Tester

AUTOOL-CT500

$649.00
Unit price per

Shipping calculated at checkout.

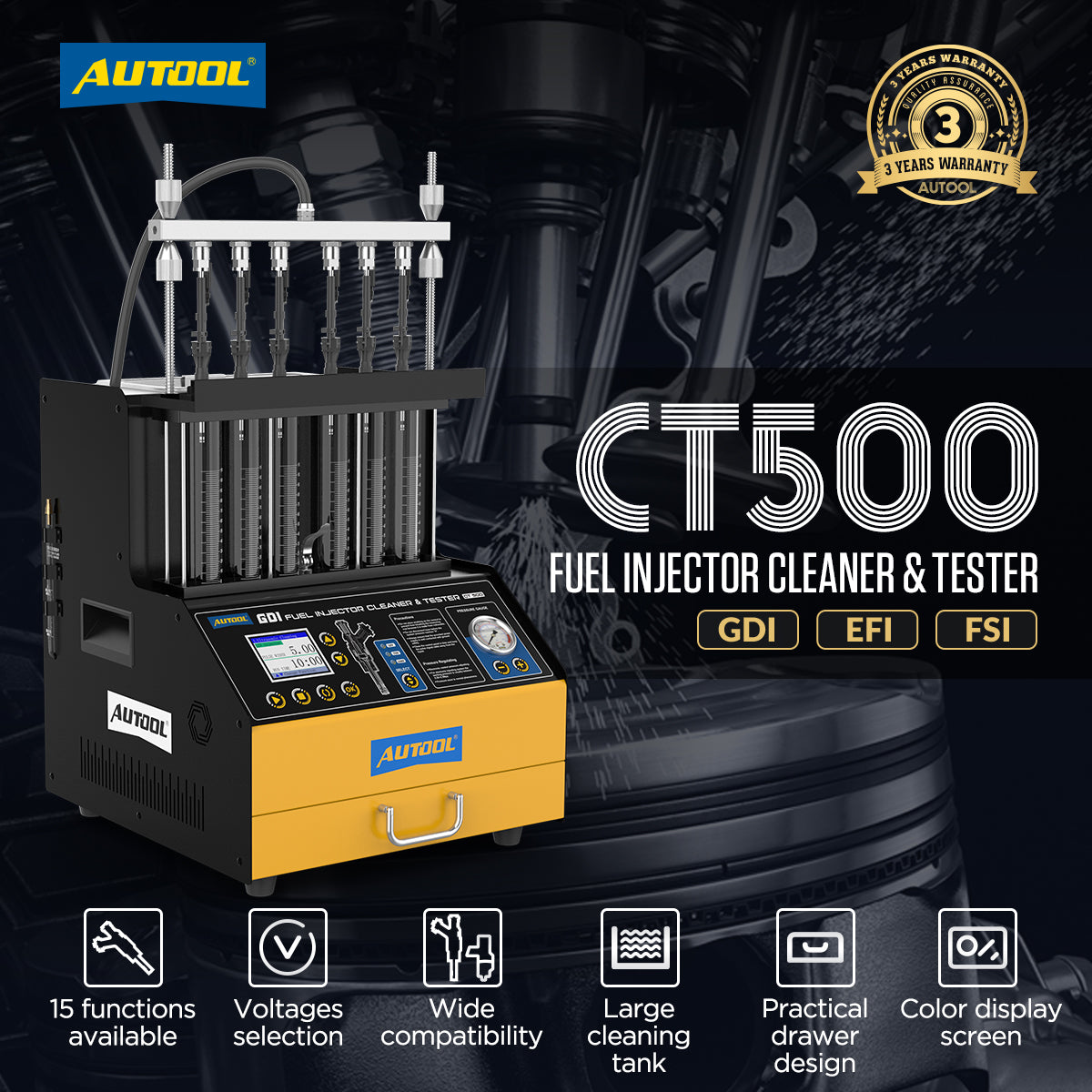

The AUTOOL CT500 Fuel Injector Cleaner & Tester combines ultrasonic cleaning and micro-computer oil pressure control technology.

AUTOOL CT500 Fuel injector Diagnostic And Cleaning Machine simulates operating conditions of the engine and cleans and inspects the fuel injectors of automobiles. This equipment is the necessary and preferred equipment for the automobile and motorcycle repair and maintenance industry, research teaching, and training departments.

Warm Tips

For ultrasonic cleaning fluid, please use professional engine carbon cleaning fluid.
Please use professional injector test fluid, do not use corrosive cleaning fluid, cleaning fluid will damage the equipment, if you test the injector with cleaning fluid and damage the equipment, you need to bear the repair cost.
Before using the ultrasonic cleaning function, add the carbon cleaning fluid first. Do not run the equipment without adding the fluid, as it may damage the ultrasonic motherboard.

What is the Difference Between the AUTOOL Fuel Injector Cleaner & Tester Machine?

AUTOOL CT500 Fuel Injector Cleaner& Tester Machine Features

Wide Range of Injectors Supported: CT500 is compatible with GDI, EFI, FSI, and standard injectors, offering 12V, 70V, and 120V power options to support a wide range of European, American, and Asian car injector types.
Injector Cleaning and Testing Function: Not only can you clean and test standard injectors, but you can also clean and test GDI injectors, such as those of Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.
Multiple Voltage Selection: The CT500 6-cylinder purge tester has 3 output voltages for you to choose from (12V, 70V, and 120V), which can better test different types of injectors.
Upgrade Ultrasonic Cleaning: The AUTOOL CT500 features a cooling fan and a thermal protection device, the power can be up to 70W and provides great ultrasonic cleaning capacity.

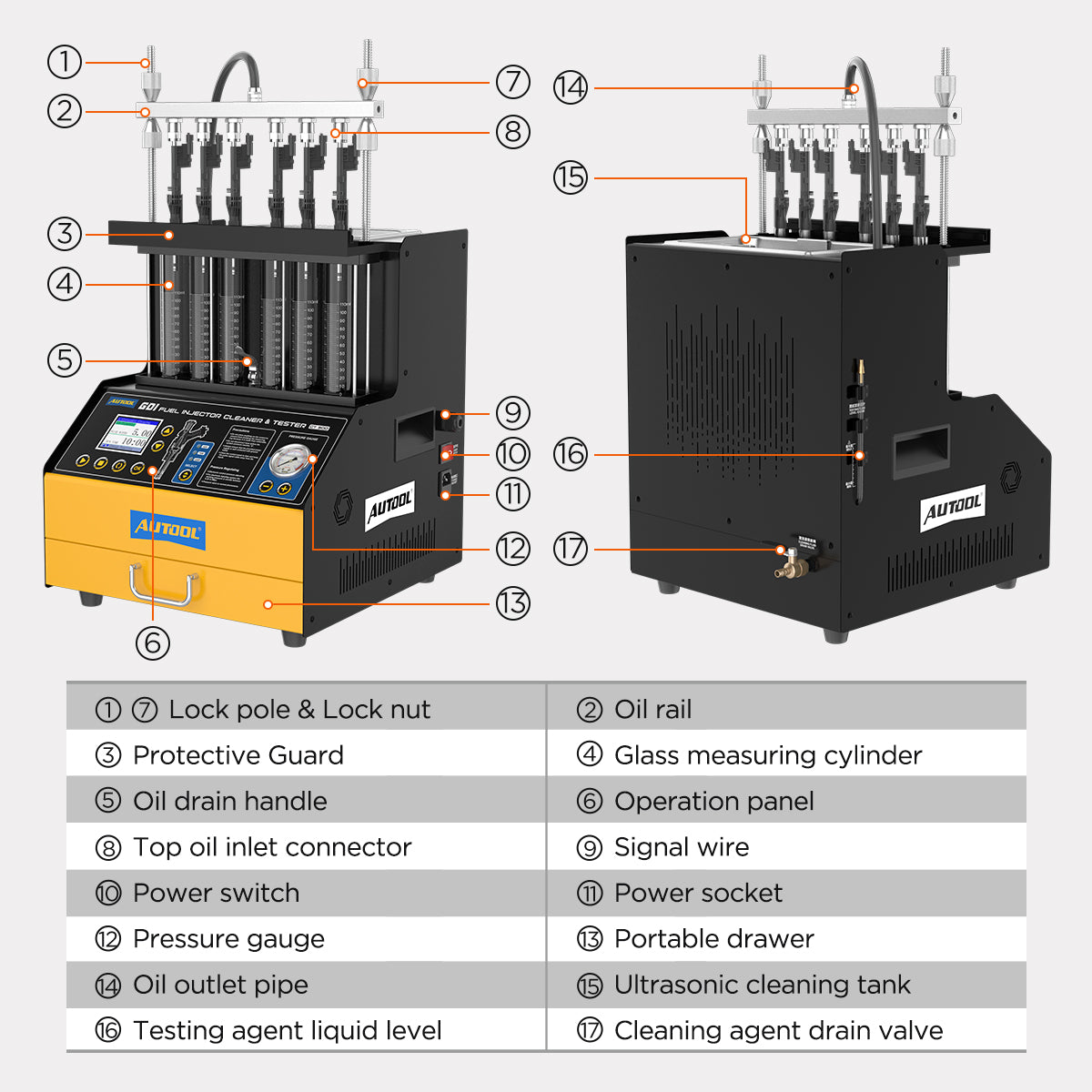

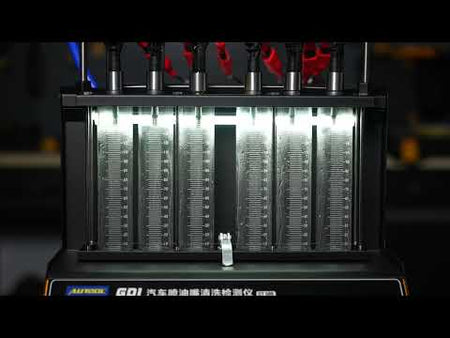

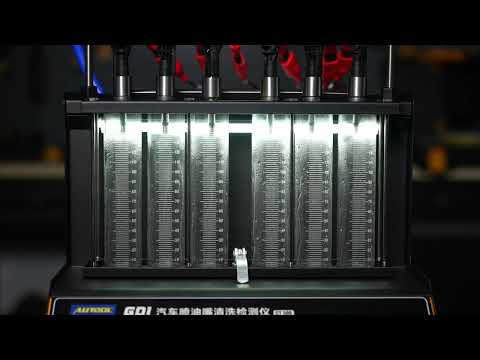

6-cylinder and 2-drain design: The mailbox level is visible, allowing simultaneous testing and cleaning of six nozzles, enhancing efficiency. The design features two control valves for liquid exclusion and test liquid recovery, promoting user-friendly operation and enabling repeated use of the test liquid.
Equipped with multiple parts and portable drawer: patented and applicable to a variety of models of composite connectors to meet your different needs. The portable drawer at the bottom is convenient for storing and accessing accessories, effectively preventing the loss of parts.

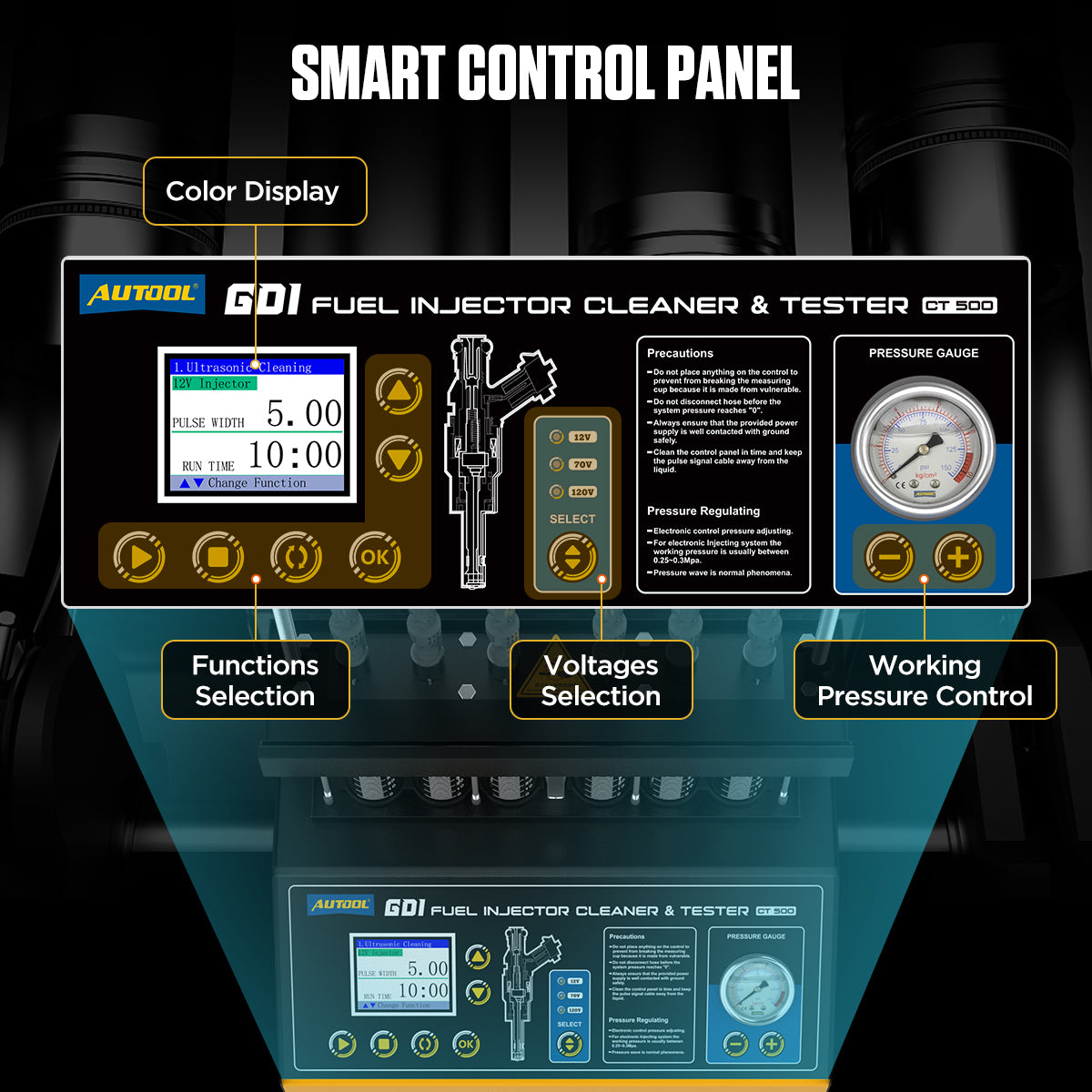

Unique Design: Adopting a high-definition color display screen, it is clear and easy to operate and learn. Electronic regulator control technology can make the oil pressure stable and wide adjustable range.
3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.

AUTOOL CT500 Fuel Injector Cleaner& Tester Machine Functions

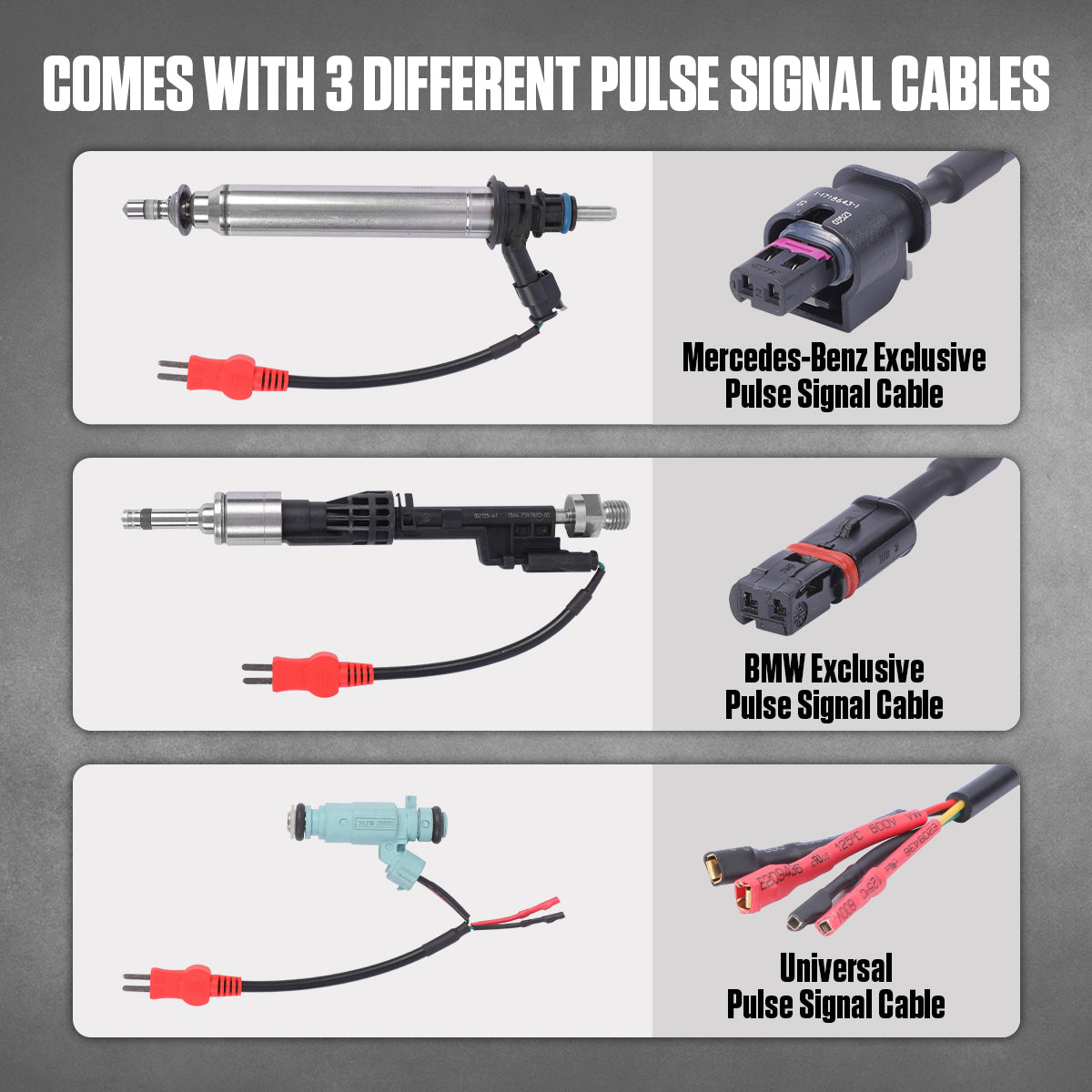

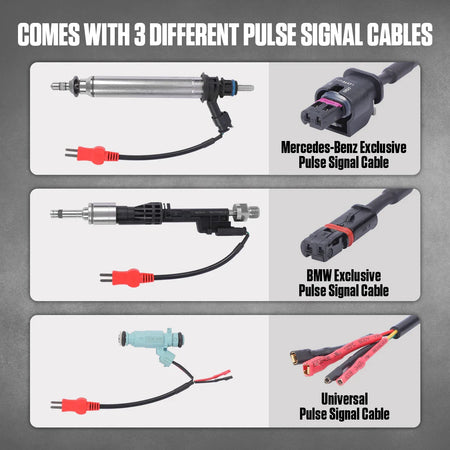

Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with ultrasonic vibration to completely remove the carbon and impurities inside the injectors.
Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
Variable Speed Test: Simulate the variable Speed of the car and test the working performance of the fuel injector.
Leak Test: Test the sealing condition of the fuel injector.
Idle speed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
Medium-speed sprayability test: Simulate the engine’s medium-speed state and test the spraying performance of the fuel injector.
High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
Flow Balance Test: Perform flow balance tests at different speeds.
Observation of Fuel Injection Shape: Observe whether the fuel injection shapes and angles of all fuel injection nozzles on the same car are uniform at various speeds.
Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
Leak Detection Test: The leak detection test is to detect the tightness of the injector needle valve under the high pressure of the system.
No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, that requires special adapters.

How To Choose Test Fluid And Cleaning Fluid?

Test Fluid: Use test fluid to check injector performance. It is colorless, odorless, non-corrosive, and stable. It simulates various injector working conditions. For best results, use professional automotive injector test fluid. If unavailable, medical alcohol (75%+ alcohol content) can be used as an alternative.
Cleaning Fluid: Use cleaning fluid to remove deposits like carbon from fuel injectors. It is usually highly corrosive and flammable. For best results, use professional injector ultrasonic cleaning fluid. If unavailable, medical alcohol (75%+ alcohol content) can be used, but the effect may be less effective.
