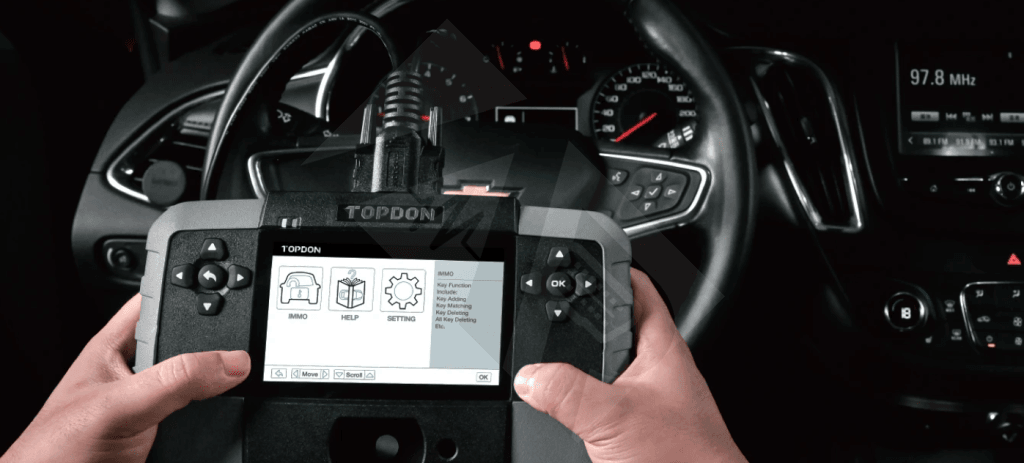

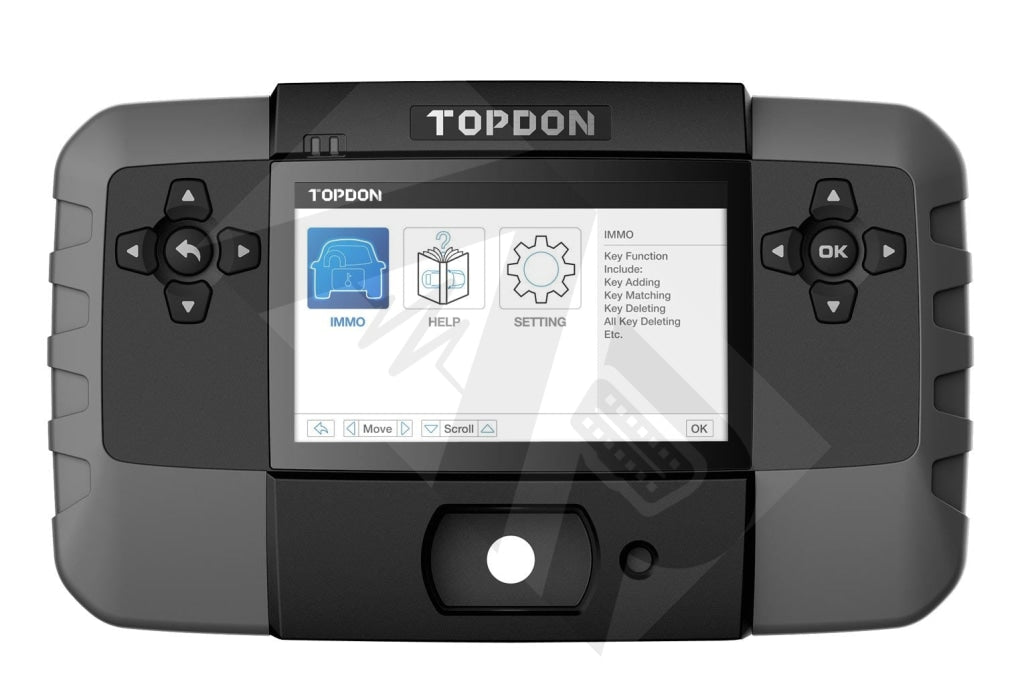

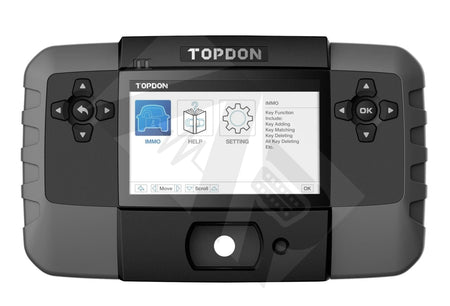

TopDon T-Ninja 1000 Immobilizer and Key Programmer

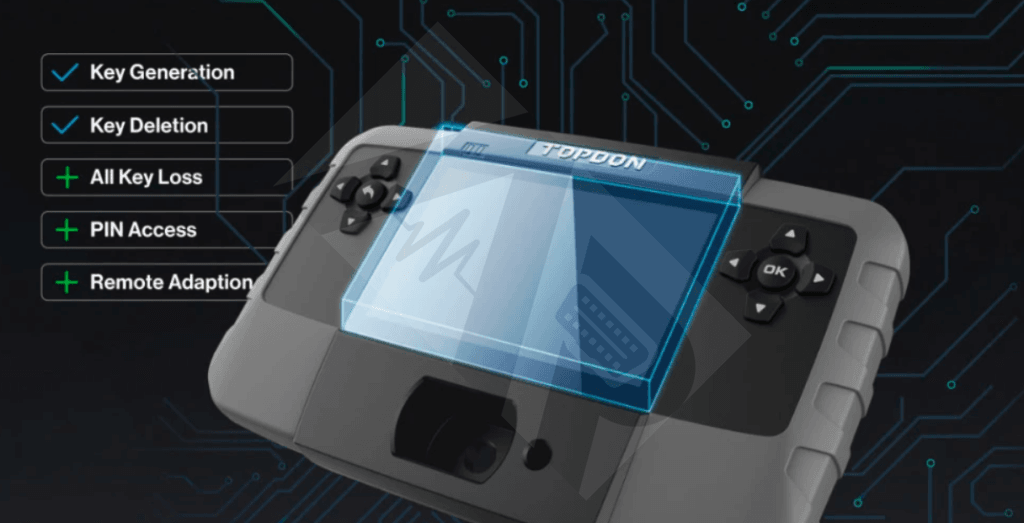

TOPDON Ninja 1000 serves as the OBD key programming tool for the automotive immobilizer system. An array of powerful features including Key Generation, PIN Reading, Key Learning, Remote Learning, Key Deletion, All Keys Lost, and more, are all covered.

With its real-time guided operation, immense online database, robust hardware, and intuitive software, you now have an effective and easy-to-use key programming machine for automotive locksmiths and technicians alike

FEATURES:

• Cost-effective; low price to meet the economic crisis and pay for itself in just one use.
• Support most vehicles in North America, and some Japanese brands and growing.
• Practical and money-making functions: Read Pin Code, All Keys Lost, Add and Erase Keys and more.
• Step-by-step guidance through a series of functions.
• Read Pin Code for most vehicles.
• Online Technical Assistance Center with a constantly updated database.
• Regular updates for supported vehicles and future vehicles.
• All by OBD, no soldering, no EEPROM

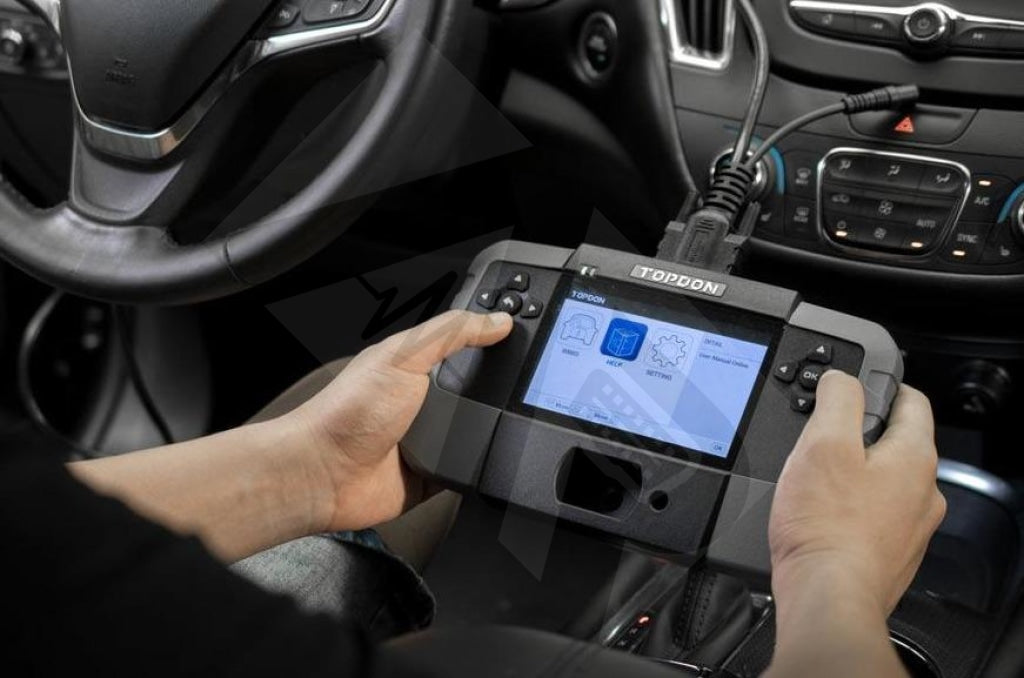

EXTENSIVE COVERAGE: Coverage for most Domestic and Asian vehicles that require key programming through the OBDII diagnostic port.

TECHNICAL SUPPORT: The T-NINJA 1000 includes access to a growing online database that is loaded with tips, tricks, and how-to's.  And the tool is supported by our industry leading call center.

THOUGHTFUL DESIGNS: With a rubberized outer protection and rugged internal housing, this tool is built for daily use in a shop environment

SPECIFICATIONS

Operating System: Rt-thread

CPU: ARM Cortex-M4, 180MHz

Display: 5.0” TFT LCD, 800*480 Resolution

Memory: 256M RAM, 128M ROM, 16G Micro SD

Material: ABS Plastic Shell, Silicone Button Starting time: ≤3S

Connectivity: USB1.1

OBD Interface: OBD-II 16PIN

Buzzer: 85db / min at10cm

Current: 500mA (typical)

Input Voltage: DV 12V

Power Consumption: 1.8W (typical)

Battery: 350mAh Button Battery (not rechargeable)

Working Humidity: ≤95% RH

Working Voltage: 12V ± 25%

Working Temperature: 14℉ - 131℉ ( 10°C - 55°C)

Dimensions: 231.5*141.5*35mm (9.11*5.57*1.38 inches)

Weight: 480g (16.93oz)

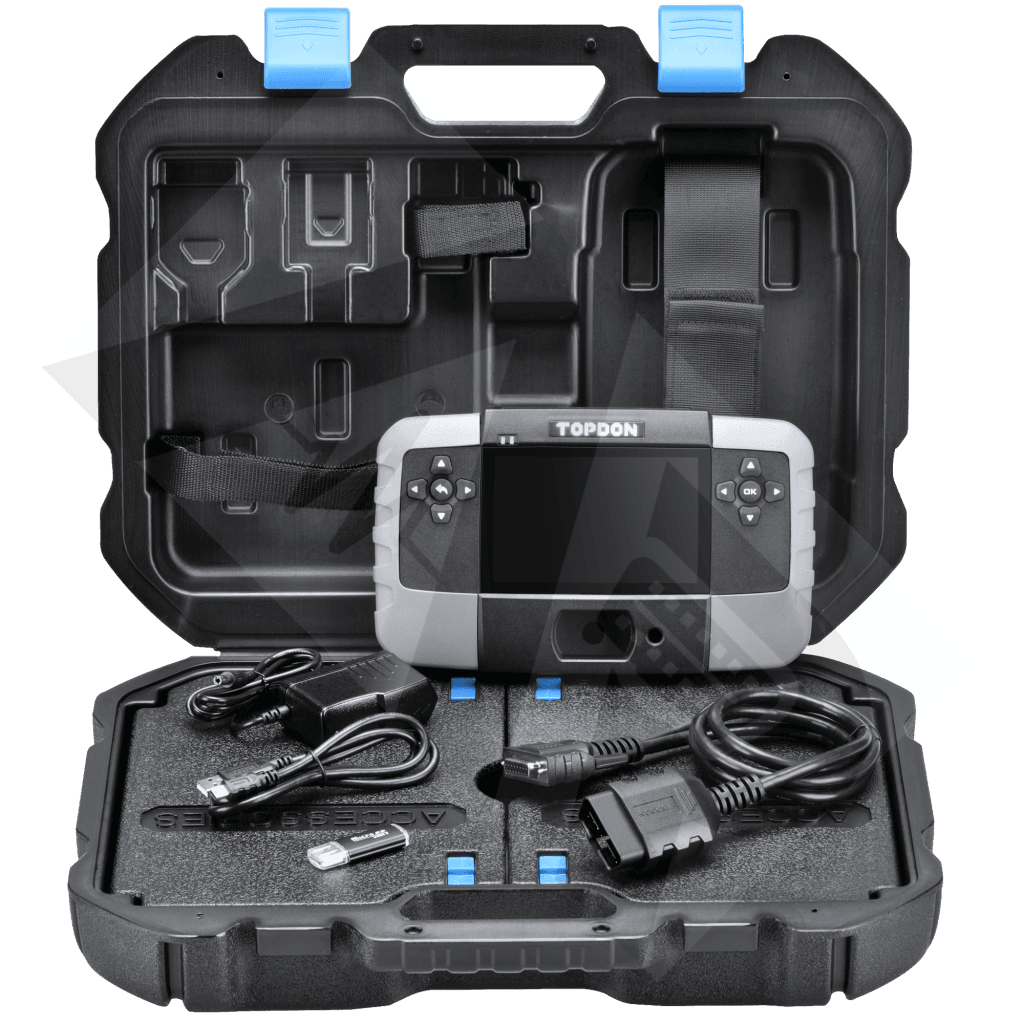

PACKAGE LIST

1 - T-NINJA 1000 Tablet

1 - Diagnostic cable

1 - USB 2.0 Micro SD Reader

1 - Power Adapter

1 - USB Cable

1 - Quick-Start Guide

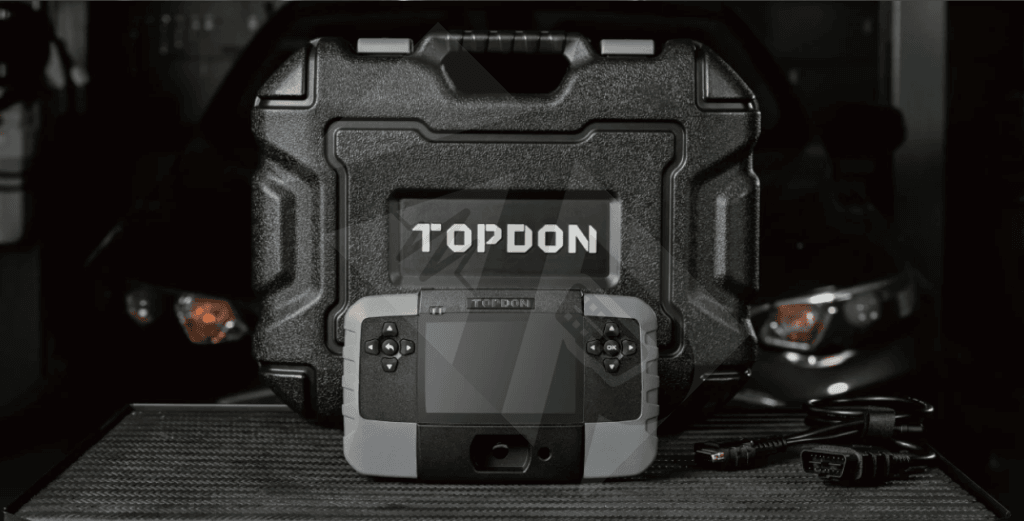

1 - Blow Molded Storage Case
