Phoenix ADAS Mobile

TD-ADAS
Shipping calculated at checkout.

Log in to purchase

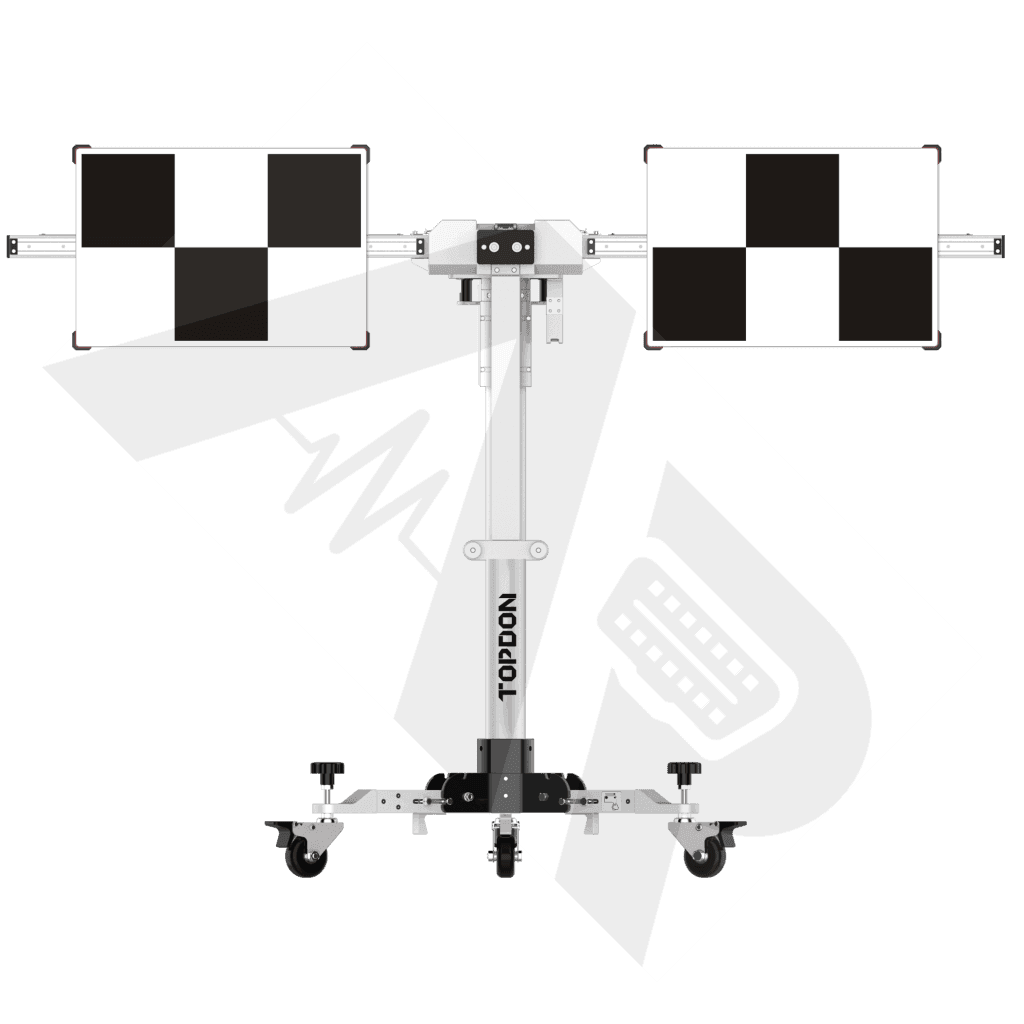

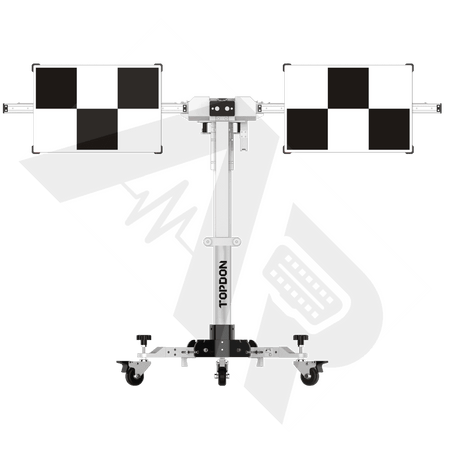

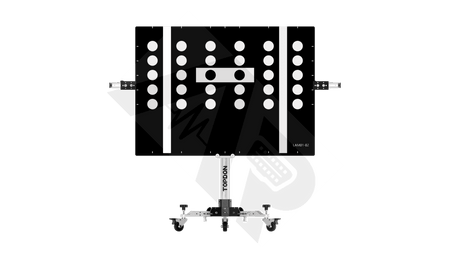

TOPDON’s Phoenix ADAS Mobile is a foldable calibration frame that offers unmatched portability and convenience, making auto shops even more productive and profitable.

Compatible with TOPDON’s Phoenix Series of diagnostic scanners, this device gives professionals the capability to provide needed work on the most modern cars.

This is a must-have tool for professional collision shops, components, and parts specialists, as well as any auto body shop that provides services such as window, trunk, and hood replacement, alignment and suspension, and many other repairs on modern cars.

FEATURES

  • Totally Mobile

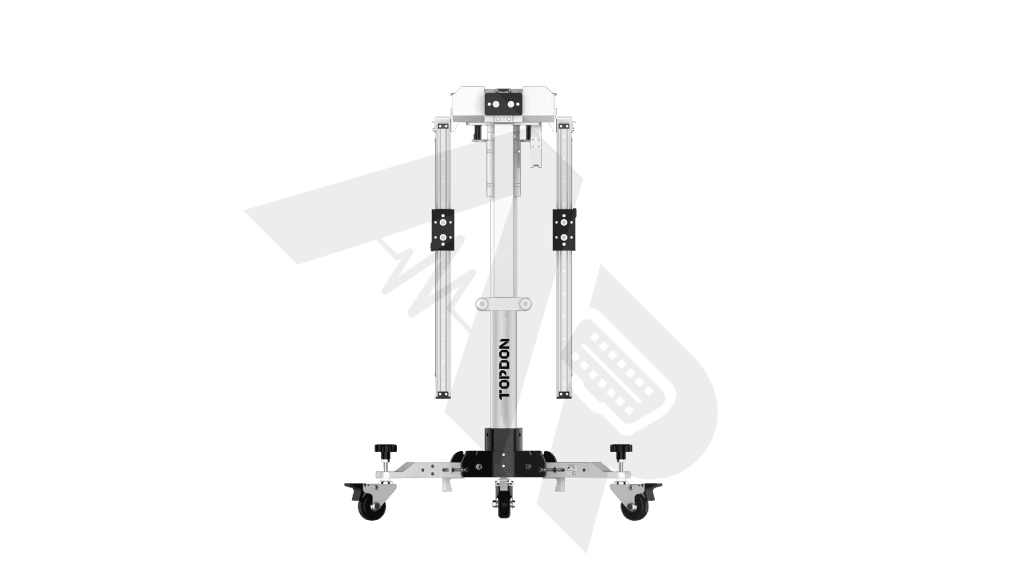

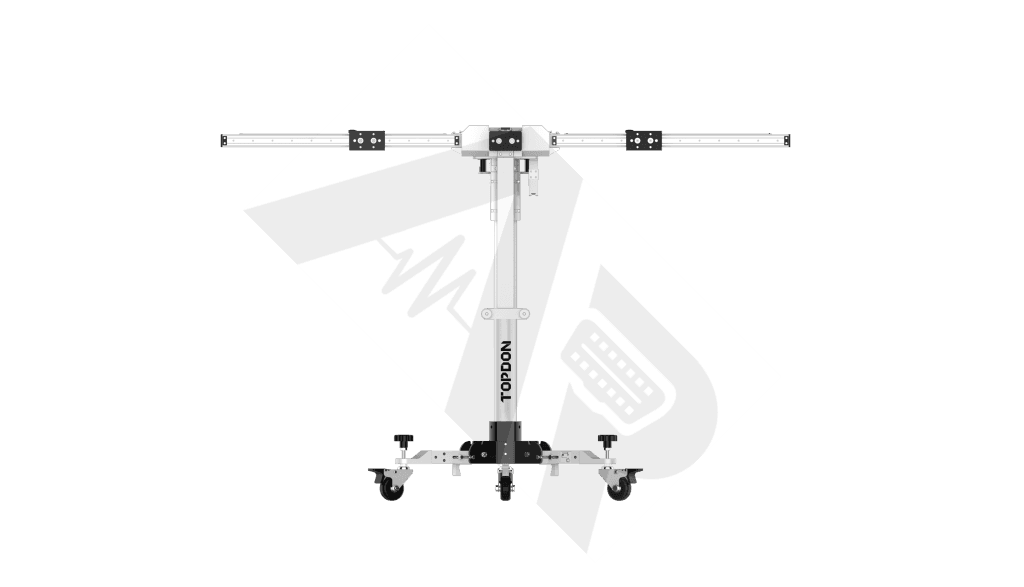

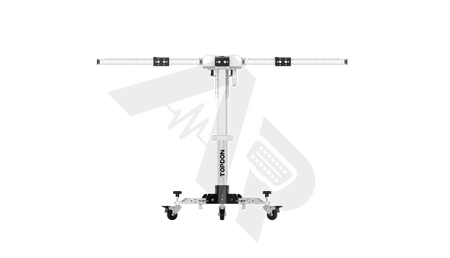

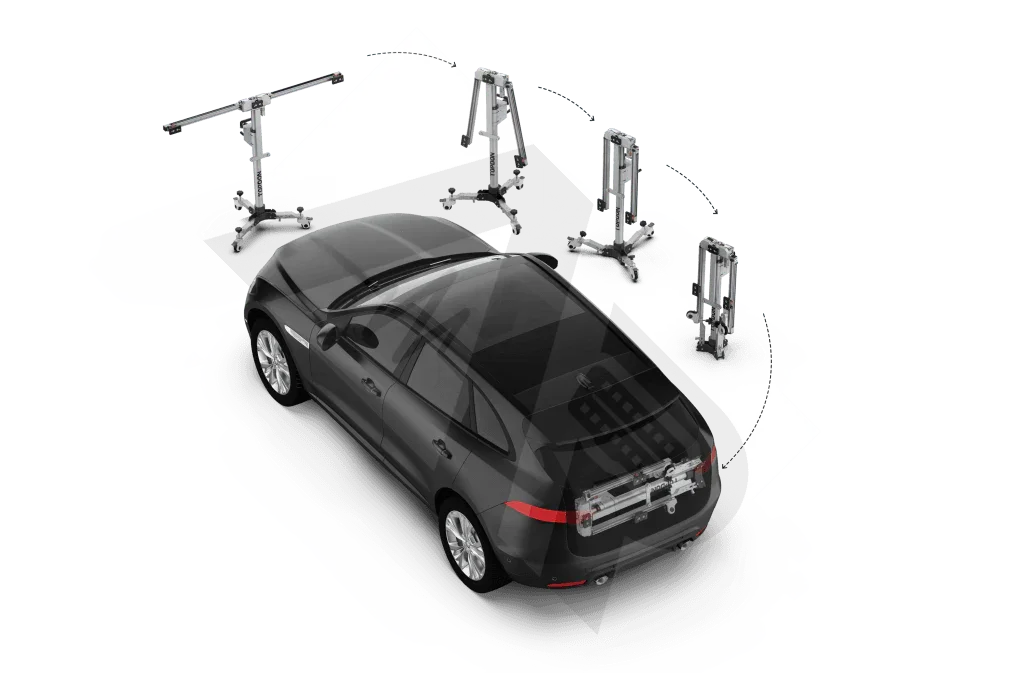

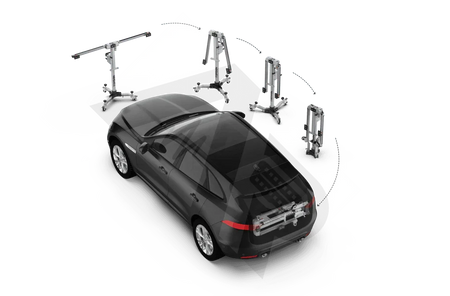

The Phoenix ADAS Mobile features a collapsible design for convenience, easy storage, and unmatched portability. With foldable arms and folding base legs, this tool can fit in nearly any vehicle’s trunk.

Professionals equipped with this device can calibrate ADAS passive and active systems from anywhere: an auto shop, a parking lot, or even at a client’s driveway.

  • Quick Set-Up

Experienced technicians can quickly set up the Phoenix ADAS Mobile and start the job in 30 minutes. Easily put away this fully collapsible tool, making your shop more productive and profitable.

  • Center-Positioning

The easy center-positioning lets you promote micro-adjustments effortlessly for even more accurate calibration services.

  • Get Unmatched Precision

A high-precision 5-lasers device will assist you in positioning the ADAS calibration tool with exactness.

Featuring a multifunctional base with 360-degree swivel wheels, the Phoenix ADAS Mobile allows you to adjust the height and make adaptations to calibrate when working on uneven ground.


DOWNLOAD

PHOENIX ADAS MOBILE BROCHURE

PACKAGE LIST

Accessories

1-Five Line Laser LAM09-01

1-Cross Laser LAM09-02

1-Laser Reflector LAM09-03

1-Auxiliary Mirror LAM09-04

1-L-Type Positioning Bracket LAM09-05

1-Plump Bob LAM09-06

1-Targets Storage Case LAM09-07

1-Targets Extension RodLAM09-08

1-Targets Extension Rod IILAM09-09

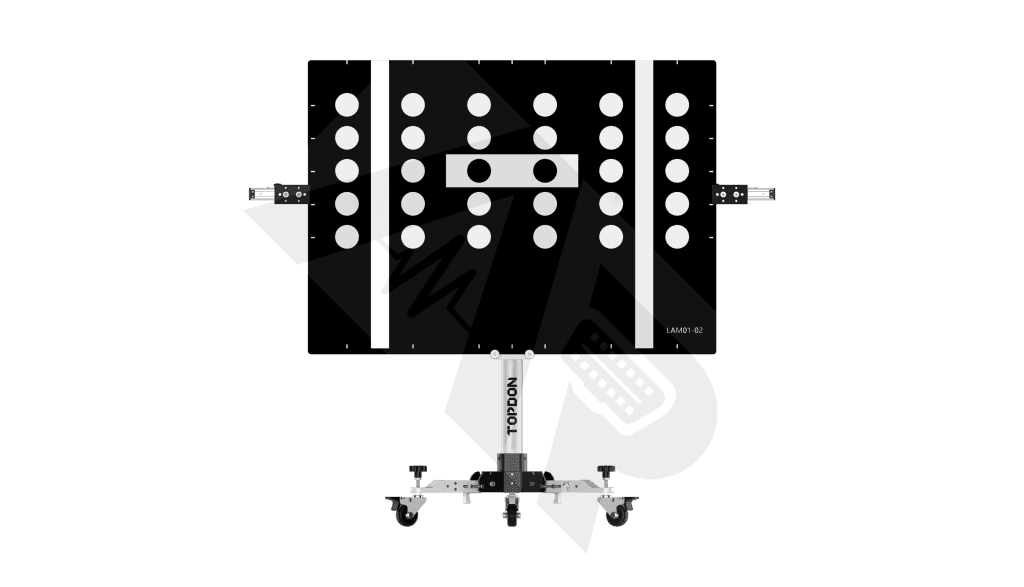

LDW Targets -- Big Targets

1-VW/Audi LAM01-02

1-Hyundai/Kia LAM01-09

1-Subaru LAM01-15

1-Subaru-LDW LAM01-21

LDW Targets -- Small Targets

1-BenzLAM01-01

1-MazdaLAM01-10

1-Hyundai/KiaLAC01-13

1-HondaLAM01-20

1-HondaLAM01-04-L

1-Honda LAM01-04-R

1-NissanLAM01-07-L

1-NissanLAM01-07-R

1-MazdaLAM01-16-L

1-MazdaLAM01-16-R

1-MitsubishiLAM01-19-R

1-Renault/NissanLAM01-12-L

1-ToyotaLAM01-06-1

1-ToyotaLAM01-06-2

1-ToyotaLAM01-06-3

1-MitsubishiLAM01-19-L

1-HondaLAM01-17

1-SuzukiLAM01-18-L

1-SuzukiLAM01-18-R

SPECS

Packing wooden case: 1150*1110*630mm

weight: 140kg (Includes mainframe, accessories, small targets, modern LAM01-09 target)

Large target packing carton: 1390*88*1000mm,

weight: 18kg (Includes VW LAM01-02 target, Subaru target LAM01-15 target, Subaru 2 target LAM01-21)

WARRANTY & UPDATES

All TOPDON ADAS components come with 12 months of warranty against manufacturers’ defects.

Updates: TOPDON ADAS is a one-time update purchase. Once applied to your Phoenix Tablet, the ADAS updates will be synchronized with your tablet updates. As long as your diagnostics software is under update contract, so too will your ADAS updates.

SHIPPING

All TOPDON ADAS Mobile products are stored at TOPDON USA HQ in Rockaway, New Jersey. Products are shipped via freight to the final destination. Lift Gate available upon request. CALL FOR SHIPPING ESTIMATE BEFORE ORDING. FREIGHT CHARGE IS SEPARATE.

This item requires FREIGHT SHIPMENT that will be charged separately from the tool purchase.
This item has a lead time.
Please CALL or TEXT 919.408.7320 with your shipping information for an accurate shipping estimate.



PRICING

TOPDON ADAS Mobile is the most complete and most affordable ADAS LDW calibration system on the market. With Complete systems, including tablets, starting a $9995.

STOCK

Purchase your complete ADAS system in stock in the TOPDON USA warehouse located in Rockaway, NJ.  Purchase additional targets as needed without having to purchase unnecessary targets in a kit.
