Zenith Z5 Professional Diagnostic Scan Tool

EZDS-Z5SD
Shipping calculated at checkout.

Log in to purchase




Introducing the all new Zenith Z5 automotive diagnostic scan tool for the North American Market!

Continuing on with the best ongoing quality assurance diagnostic program, the Zenith Z5 delivers the same trusted, high end, advanced universal software, with decades of domestic diagnostic experience and backed by the same locally based support team.

The Zenith Z5 is a world class, premium quality, compact, ruggedized 8" industrial tablet made in Korea, featuring EZDS' unparalleled diagnostic software program familiar to the North American market previous under the G-SCAN Tablet. Driven by a powerful octa-core processor for optimum performance and efficiency in the workshop.

Featuring the Android 9 operating system for fast and easy menu selection, quick boot up, multi tasking, fast networking and enhanced security. The Zenith Z5 is an ergonomic, lightweight, workshop friendly device which provides a crystal clear, field optimized display in bright sunlight conditions.

With advanced graphing, recording & logging of vehicle data analysis, fast glitches can be monitored, saved and reviewed very simply.

The Zenith Z5 supports 12 and 24v vehicles with Bi-Directional functionality to perform functions such as key programming, DPF regeneration, injector pilot learning, steering angle calibration, electronic park brake service mode, automatic transmission relearn functions, module configuration and programming plus much more.

The Smart update system allows the user to remain up to date easily using Wi-Fi connection, and files can be printed or shared via Bluetooth.

The professional Pre/Post scan diagnostic report function provides an intuitively designed diagnostic report created quickly and easily, including workshop and customer details, diagnostic trouble codes, saved image files, camera images, personalized notes etc.

The Z5 offers diagnostic software programmed by engineers with technicians in mind, including fast access to Service functions menu & Auto selections, all backed by the same professional, local technical support team to assist.



  • Simple, Yet Intuitive Layout
    Zenith Z5 offers a simple iconic main menu for easier and quick access to desired functions. With 3 available display modes, the user can customize the theme and button locations.
    Service Function
    Time is money. Z5 offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu layout.
    Auto Selection
    Zenith Z5 offers option to automatically detect the vehicle information including the VIN number, model year, model name, engine type, and other necessary information that are retrieved.
    Quick System Search
    ‘System Search’ option automatically scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each system detected.
    Data Log & Feedback System
    In a case of communication or function error, a user can log the bi-directional data transmission between the tool and vehicle control systems. This log can be sent to the software development team via the log capture & transfer function. The data log files received will be analyzed, feedback will be passed on, and a patch file update provided, if necessary, often within 24 hours of receiving the report, during working days. (Exceptions may apply)
    Pre & Post Diagnostic Report
    Z5 offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only you can save the reports as a PDF file in the internal/external memory, with the help of its advanced network connectivity, you can print the report directly with a wireless printer or send them to a desired E-mail address.
    J2534 Pass-thru
    Zenith Z5 acts as a J2534 Pass-thru device for multiple carlines with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics. (Exceptions may apply)
    Fast & Responsive Graphing Mode
    Z5 offers a fast and intuitive graphing mode which instantly self-adjusts maximum and minimum scale, enabling the users to observe and compare live data more efficiently.
    Full Text Description
    No more acronyms and cutting of significant texts. Z5 offers the long-text DTC descriptions in full screen, so you get all the information you need.
    Smart Update
    Z5 offers a quick and easy software update process with its strong network connectivity. Previous or latest software versions for each carline can be quickly downloaded directly from the server, as per the user’s preference.





Optional OBD Adapters

Parts available as optional supply



TOYOTA 17+1P Square

EZ0CB004

Used for communication with old Toyota and Lexus cars with 17+1 pin "Square (rectangular)" type diagnostic connector in the engine compartment.

TOYOTA 17P Round

EZ0CB005

Used for communication with old Toyota and Lexus cars with the 17-pin "Round (Semi-circular)" type diagnostic connector. Same appearance as the Mazda 17P adapter, make sure to check the name engraved on the surface.

HONDA/ACURA 3P

EZ0CB006

Used for communication with old Honda and Acura cars with the 3-pin or 5-pin diagnostic connector.

MAZDA 17P

EZ0CB007

Used for communication with old Mazda models. Same appearance as the Toyota 17P R adapter, make sure to check the name engraved on the surface.

SUBARU 9P

EZ0CB008

Used for communication with old Subaru cars with the 9-pin diagnostic connector. (Can be excluded from the Asian kit due to regional preferences)

MITSUBISHI/HYUNDAI 12P+16P

EZ0CB009

Used for communication with old Mitsubishi or Hyundai cars with the 12-pin single or 12+16pin dual diagnostic connector.

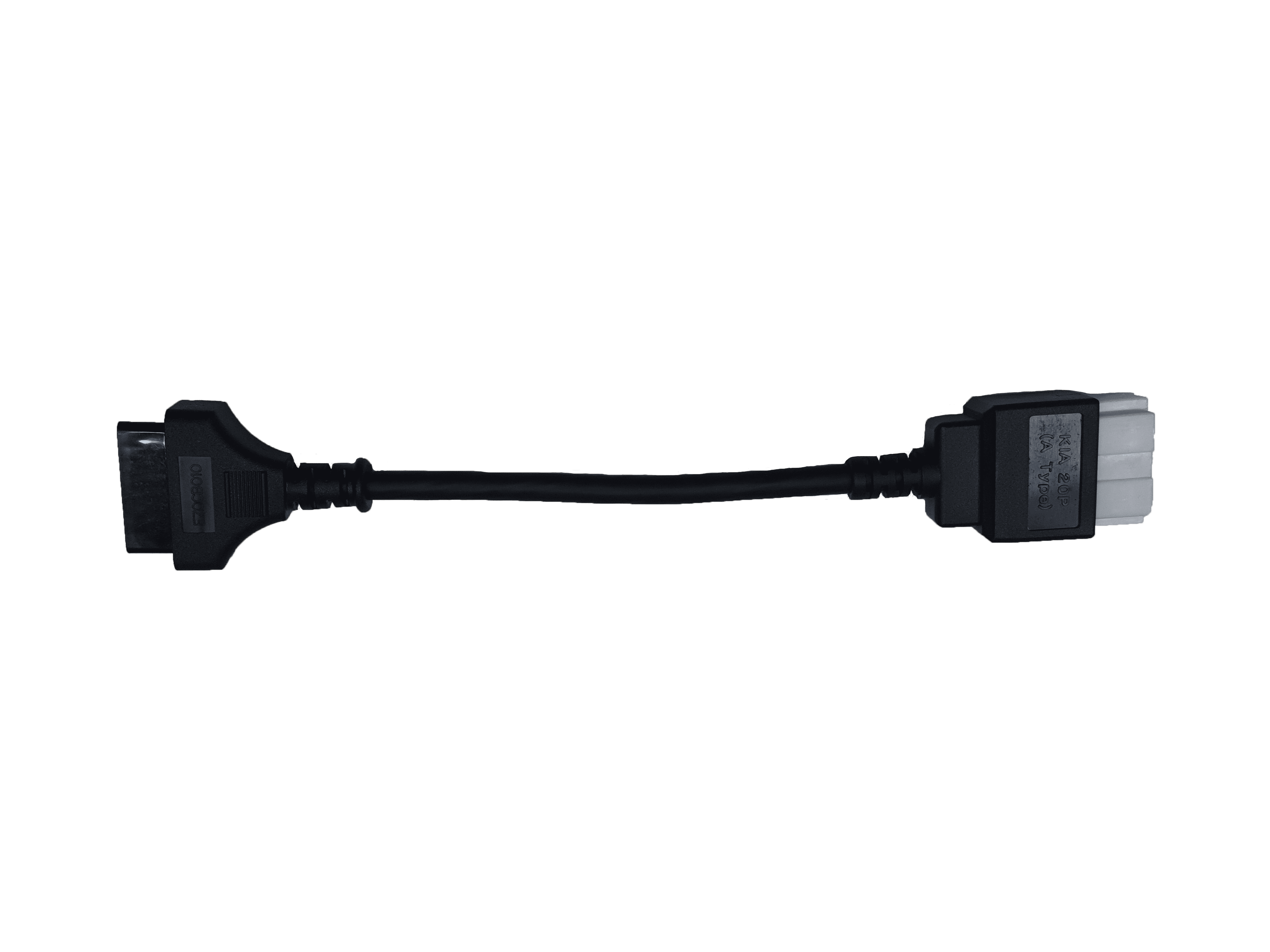

Kia 20P-A type Connector

EZ0CB010

Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartment. Generally used for MY cars.

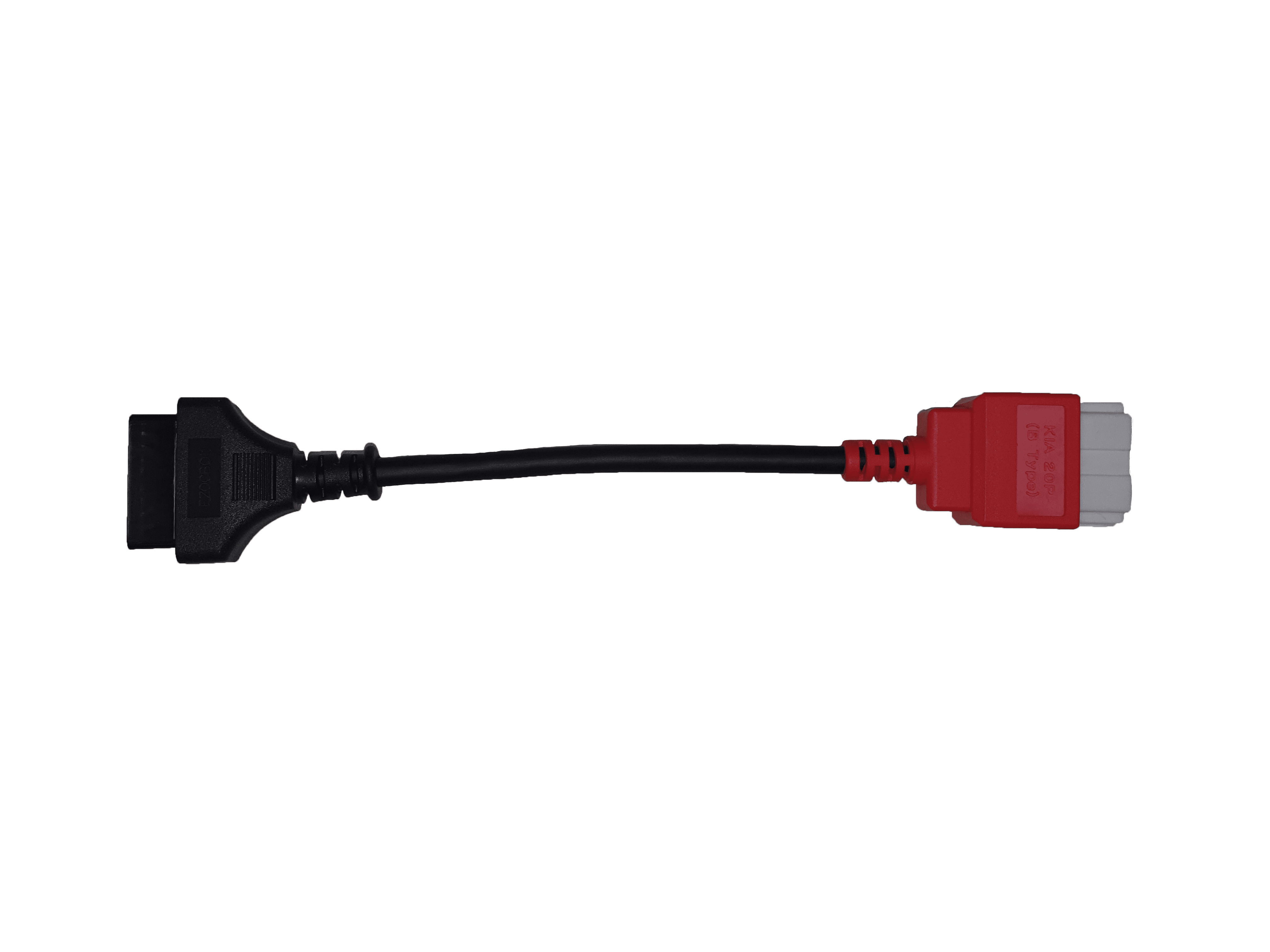

Kia 20P-B type Connector

EZ0CB011

Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartment. Generally used for 0305 MY cars.

Daewoo 12P

EZ0CB015

Used for communication with old Daewoo cars with 12 pin diagnostic connector (Can be excluded from the Asian kit due to regional preferences)

NISSAN 14P

EZ0CB013

Used for communication with old Nissan or Infiniti cars with the 14-pin diagnostic connector.

SSANGYONG 14P

EZ0CB016

Used for communication with old Ssangyong cars with 14 pin circular diagnostic connector in the engine compartment (Can be excluded from the Asian kit due to regional preferences)

SSANGYONG 20P

EZ0CB014

Used for communication with old Ssangyong cars with 20 pin square diagnostic connector in the engine compartment

(Can be excluded from the Asian kit due to regional preferences)

J1939 9P + J1708 6P

EZ0CB022

Used for generic communication with SAE J1939 compatible commercial vehicles



ISUZU 20P-10P-3P

EZ0CB023

Used for communication with old type Isuzu commercial vehicles

Universal AdapterHyundai Commercial 4P

EZ0CB021

Used for communication with the vehicles that are fitted with non-standard OBD adapters that Zenith5 standard kit adapters are not compatible

Hyundai Commercial 16P

EZ0CB025

Used for most Hyundai and Kia commercial vehicles. Similar to standard OBD2 connector, but the internal wirings are different. Colored light grey for recognition

Hyundai Commercial 4P CNG

EZ0CB026

4-pin circular connector used specifically for Hyundai CNG (Compressed Natural Gas) buses

HINO 12P-5P

EZ0CB024

Used for communication with old type Hino commercial vehicles

AUDI/VW 4P

EZ0CB020

Used for communication with old Audi / VW cars with the 4 pin diagnostic connector.



BMW 20P

EZ0CB019

Used for communication with old BMW cars with the 20 pin diagnostic connector.





  • Specification

    Category Specifications
    CPU Octa Core Processor @ 2.0 GHz
    Operating System Android 9
    System Memory Internal 32GB, RAM 3GB
    External Memory Micro SD Card
    LCD 8.0 inch FHD (1920 x 1200)
    Input Devices Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
    Camera 8 megapixel auto-focus with LED flash
    Sound Loud Speaker | 1 Microphone; 3.5 pi standard audio jack
    Rechargable Battery Li-ion 3.8V 3200mAh
    Operating Voltage DC9 ~ 30V
    Sensors Ambient Light, Proximity, Gyroscope, Accelerometer
    Dimension 225 x 136 x 33mm
    External Port USB 1ea, USB C 1ea
    Network RJ45 Ethernet, WiFi 802.11 a/b/g/n, Bluetooth 4.2

    AC/DC Adapter

    Category Specifications
    Input Power 100 ~ 240V AC
    Frequency 50 / 60 Hz
    Input Currenty 1.5 A
    Output Voltage 12V DC
    Output Current 3.2 A

    Supported Communication Protocols

    CAN (High speed, Low speed, Single)
    ISO-9141, ISO-9141-CARB, KWP-2000
    SAE-J1708, SAE-J1587
    J1850(PWM/VPW)
    Melco Pull-Down
